Mini Rectangular RFID Card Laser Engraving & Data Personalization Machine YMC-LDP-1

Mini RFID Card Laser Marking & Data Encoding Machine YMC-LDP-1

Small Circular Card Laser Marker & Data Encoder YMC-LDP-1

Mini Special Shape Card Personalization Line YMC-LDP-1

1. Introduction of Mini Rectangular RFID Card Laser Engraving & Data Personalization Machine YMC-LDP-1

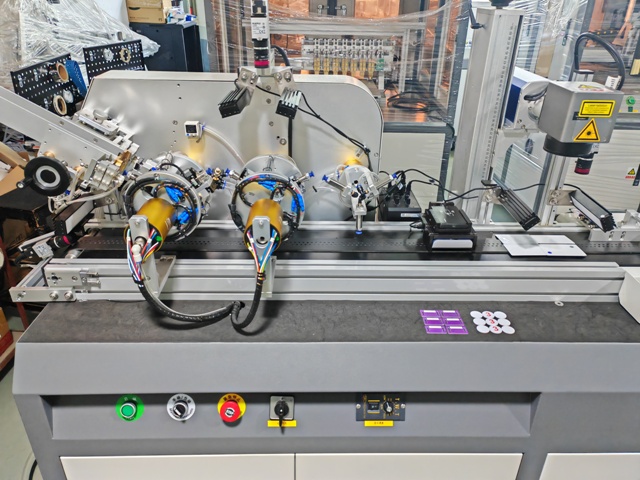

Mini RFID Card Laser Marking & Data Encoding Machine YMC-LDP-1 has the basic functional configuration including horizontal adjustable card feeder, OCR inspection units, card sucking and rotation systems, RFID HF/LF Card Encoder(Block data writing/UID reading/Key change) and Laser engraving unit (CO2 type, optic fiber type or more).

Mini RFID Card Laser Marking & Data Encoding Machine YMC-LDP-1 can accurately feed, and collate the mini special shape cards (including small circular RFID card, small rectangular smart card or other special shape smart cards) by using very smart and reliable card feeding and monitoring system.

2. Technical parameter of Mini Rectangular RFID Card Laser Engraving & Data Personalization Machine YMC-LDP-1

1). Dimensions: L2100mm W1100mm H1650mm 400Kg

2) Power supply: AC220V 50/60 Hz 1.5Kw

3) Compressed air: ≤ 6.5 Kg/CM2

4) Control form: Industrial computer control

5) Material specifications: non-standard card, square card size: 20 * 20-20 * 65. Circular diameter up to 20-60mm

6). Working speed: The card speed is 4000 sheets per hour, and the laser speed depends on the size of the data

7) work people: 1 person

3. Application of Mini Rectangular RFID Card Laser Engraving & Data Personalization Machine YMC-LDP-1

Mini RFID Card Laser Marking & Data Encoding Machine YMC-LDP-1 is also names as Small Circular RFID Card Laser Marker & Data Encoder, Mini Rectangular RFID Card Laser Engraving & Data Personalization Machine, Mini Special Shape Card Personalization Line or Mini Glue-dropping Card Chip Date Writer and Laser Engraver. This machine is one of our best sellers among our smart card machines.

It can precisely recognize the right card surface and position the right marking area to be processed by the following laser unit.

The speed can reach around 3000CPH. It is the right and wise choice for the card personalization center working on mini special shape cards data encoding and laser marking purpose.

Based in China, with quality products, competitive price and services, we have been serving the card industry worldwide for over ten years. We have established long-term business cooperation with many customers located in nearly 40 countries worldwide including USA, Canada, Mexico, Chile, Argentina, Russia, India, Malaysia, Thailand, etc.
