Read And Write Speed Varies From 3000 To 8000 CPH Desktop RFID/NFC Tag Data Personalization Device YRFT-DP-1

Desktop RFID/NFC Tag Data Personalization Device YRFT-DP-1

RFID Tag or NFC Tag Data Encoder YRFT-DP-1

Desktop RFID/NFC Tag Chip Data Writer YRFT-DP-1

RFID/NFC Tag Chip Data Writer YRFT-DP-1

RFID Tag/NFC Tag Chip IC Proofreader YRFT-DP-1

1. Introduction of Read And Write Speed Varies From 3000 To 8000 CPH Desktop RFID/NFC Tag Data Personalization Device YRFT-DP-1

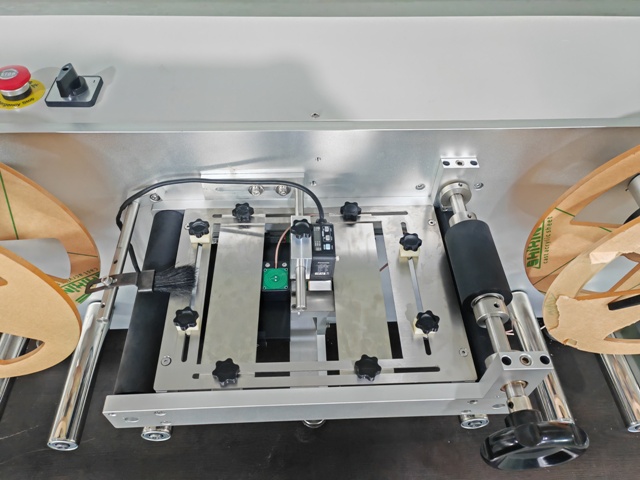

Desktop RFID/NFC Tag Data Personalization Device YRF-TDP-1 is developed for realizing such functions as electrical performance detection, block data writing and encryption (change key) for various RFID tags including high frequency HF tags/ultra-high frequency UHF tags/NFC tags. This machine can greatly increase NFC tag personalization work efficiency.

2. Technical parameter of Read And Write Speed Varies From 3000 To 8000 CPH Desktop RFID/NFC Tag Data Personalization Device YRFT-DP-1

1). Dimensions: L1100mm*W620mm*H520mm, GW:48Kg

2). Power supply: AC220V 50/60 Hz 1.5Kw

3). Control mode: Mitsubishi PLC+ computer (Note: The computer is not included in this device offer, and normally the user can user their own computer to connect and work this device.)

4). RFID Tag width: 20-260mm.

5). Work speed: Read and write speed varies from 3000 to 8000 CPH according to the data content.

6). Staff: 1 person

3. Features of Read And Write Speed Varies From 3000 To 8000 CPH Desktop RFID/NFC Tag Data Personalization Device YRFT-DP-1

1). It is featuring good tape tension control with adjustable tension for labels of various sizes;

2). The machine is equipped with a high-frequency HF reader by default configuration, and an optional ultra-high frequency UHF reader is available for easy selection.

3). The operating software is independently developed and easy in operation. It is compatible with tag chips from multiple chip manufacturers.

4). The machine can achieve various chip data writing and encryption functions, and has various data tracking and querying functions such as logs.

4. Application of Read And Write Speed Varies From 3000 To 8000 CPH Desktop RFID/NFC Tag Data Personalization Device YRFT-DP-1

Desktop RFID/NFC Tag Data Personalization Device YRT-DP-1 can be known or named as RFID Tag or NFC Tag Data Encoder, Desktop RFID/NFC Tag Chip Data Writer, RFID/NFC Tag Chip Data Writer, RFID Tag/NFC Tag Chip IC Proofreader or RFID Tag or NFC Label Roll-to-Roll Data writer.
