Manual Sheet Collating and Bonding Machine/Manual Card Sheet
Collator and Bonder YLB-1
(keyword: card sheet bonding machine, card sheet collating machine,
INLAY sheet bonding machine, manual card sheet collating and
bonding machine, card machine, smart card machine)
1. Introduction of Manual Sheet Collating and Bonding
Machine/Manual Card Sheet Collator and Bonder YLB-1
Controlled by solid relay, the machine applies the imported
temperature control system for temperature controlling, and time
relay is used to control bonding time.
2. Feature of Manual Sheet Collating and Bonding Machine/Manual
Card Sheet Collator and Bonder YLB-1
1. ) The machine uses double cylinders for moving power, and the
pressure is adjustable.

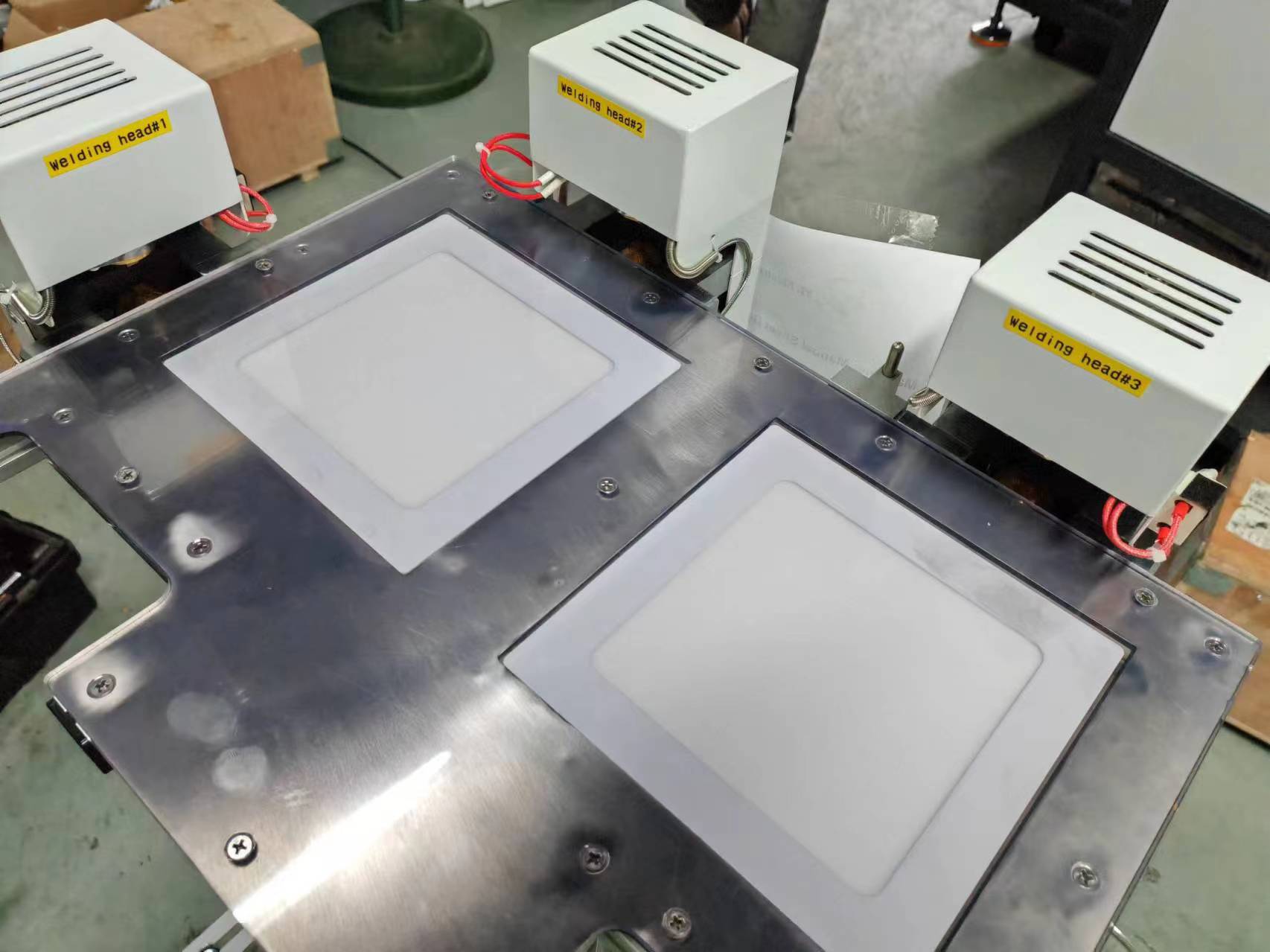

2.) It is equipped with 3 bonding heads. The bonding position can
be adjusted.
3.) It applies electrical heater to heat up and uses the
temperature controller to control the temperature.
4.) Bonding time is controlled by time relay, and it is simple to
set.
| Speed | 800~1200 sheet/hour |
| Operator needed | 1 person |
| sheet Layout: | 3*8 4*8 or 5*5 based on customer's request |
| Weld Spot Quantity | 2-3 (adjusted position) |
| Total power | 2kw |
| Compressed air | 6 kg/c㎡(Dry) |
| Gross weight | around 50 kg |
| Dimension | L600×W500×H800mm |
3. Technical Paramter of Manual Sheet Collating and Bonding
Machine/Manual Card Sheet Collator and Bonder YLB-1
| Power Supply | AC 220V/50 HZ | Weld Spot Quantity | 2-3 (adjusted position) |
| Air Source | 6 kg/c㎡(Dry) | Weight | Approx 50Kg |
| Total Power | 2KW | Available Sheet | 3X8,4X8,5X5 |
| Temp Control Range | 0-400℃ | Operator | 1 person |
| Temp Control Precision | ±2℃ | Dimension | L600×W500×H800mm |
| Capacity | 800~1200 sheet/hour | | |
4. Application of Manual Sheet Collating and Bonding Machine/Manual
Card Sheet Collator and Bonder YLB-1
It can bond the materials as below:
PVC, ABS, PET, etc;
Note: different materials have different bonding parameters (like
temperature, Time and Pressure)
