RFID Card INLAY Sheet Hole Puncher Adjustable for Prelam Inlay
Production YHP-A+
1.Machine Introduction of RFID Card INLAY Sheet Hole Puncher
Adjustable for Prelam Inlay Production YHP-A+

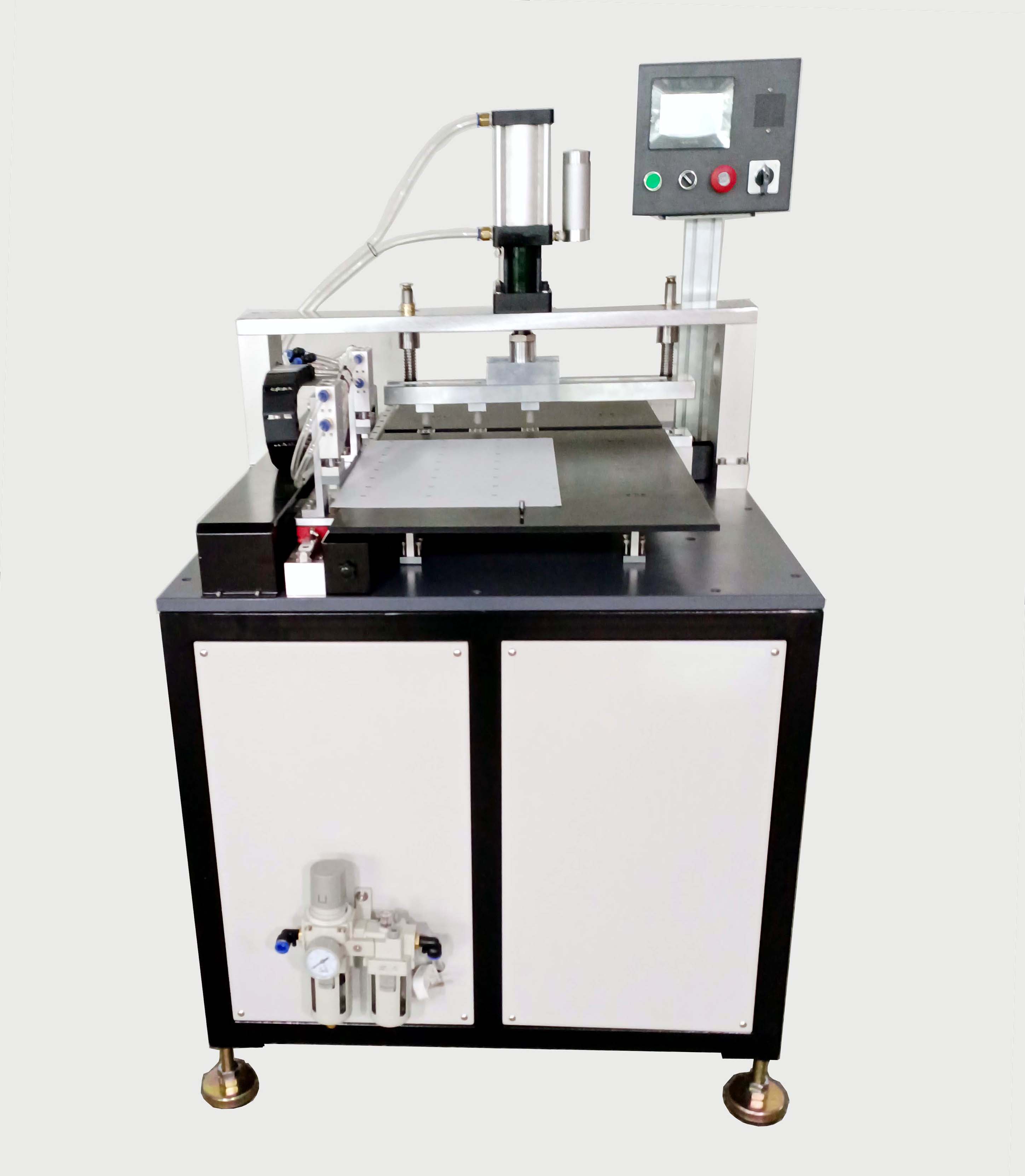

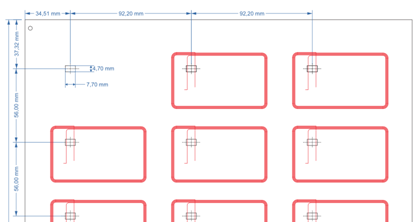

RFID Card INLAY Sheet Hole Puncher YHP-A+ is designed to punch both
two side position holes and chip fixing holes (like 24 hole for 3*8
layout) for installing COB chips in the INLAY sheet middle layer in
the process of RFID card INLAY sheet production.
It can punch 2-3 sheets per time to ensure higher work efficiency.
The positions of chip fixing holes to be punched are adjustable in
a certain range by adjusting each punching mould position and/or
the stepping distance inside the touch screen. It has one set of
punching mould for standard big chip (chip size 5*8mm) in the
default configuration. The punching mould for standard smaller chip
(chip size 3.8*5.8mm for MoA8 chips) is optional.
This hole punching machine uses to punch of the positioning hole
and the clearance hole on PVC, PETG and ABS sheets with different
thickness and size for contactless cards (RF cards). Control by the
servo system and use the precision mold to punch, which ensure the
quality of the products and improve productivity, only need one
operator.
In the machine structure, the machine is easy to operate and
maintain, which enhances the service life of machine and
productivity.
2. Feature Parameters of RFID Card INLAY Sheet Hole Puncher Adjustable for Prelam Inlay
Production YHP-A+
Technical parameters
- Applicable layout: 3×8, 4×8, 5×5 or 9×8( for 3-tag mini RFID card)
- Applicable material (carrier) : Plastic materials like PVC, ABS and
PETG
- Number of punch die head: 3, 4, 5 or 8
- Compressed air:5kg/cm2, 50L/min
- Speed (max.): 800-1000 sheets per hour
- Power supply :AC220V, 50/60HZ
- Position precision: 0.05mm
- Power:1kW
- Weight: around 350 kg
- Dimension:L1350×W700×H1550
| Dimensions | H1350*W700*L1550mm |
| G.W | 350kg |
| Power | AC220V 50/60HZ 1.5KW |
| Air pressure | 5kg/cm² |
| Air consumption | 50L/min |
| Control mode | servo positioning + PLC control |
| Accuracy | Servo division per step = 0.0125mm |
| Mechanical adjustment | 0.01mm |
| Operator | 1 |
| Output | 800-1000 sheets per hour |
| Applicable layout | 3×8, 4×8, 5×5 or 9×8( for 3-tag mini RFID card) |
| Applicable material (carrier) | Plastic materials like PVC, ABS and PETG |
| Number of die head: | 3, 4, 5 or 8 |
| Compressed air: | 5kg/cm2, 50L/min |
| cutting speed (max.) | 800-1000 sheets per hour |
| Power supply | AC220V, 50/60HZ |
| Position precision | 0.05mm |
| Power | 1kW |
| Weight | around 350 kg |
| Dimension | L1350×W700×H1550 |
3. More details of RFID Card INLAY Sheet Hole Puncher Adjustable for Prelam Inlay
Production YHP-A+
1. Punch the hole for the chip of the inlay, which ensures the
modules and the PVC embedding on the same plane and protects the
chips.
2. The machine has two molds with two different sides, it can be
used for different production technology, just press the switch to
select the mold.
3. The pitch and the size of the punching mold can be adjusted
according to the requirement.
4. The cylinder drives punching mold up and down with the low
noise.
5. PLC control and can be punched different layout,
6. Use the precision mold to punch and ensure the quality of the
products.
7. The life span of the mold is: It only needs to be whetted every
two million times punching
8. Punching with the low noise.
9. Materials are loaded using the dowel pin, easy to adjust.
10. Use the servo system to position which ensure the position
accurately
11. Use the PLC and the touch screen, stable and visualized.
12 .HMI system make communication easier.
