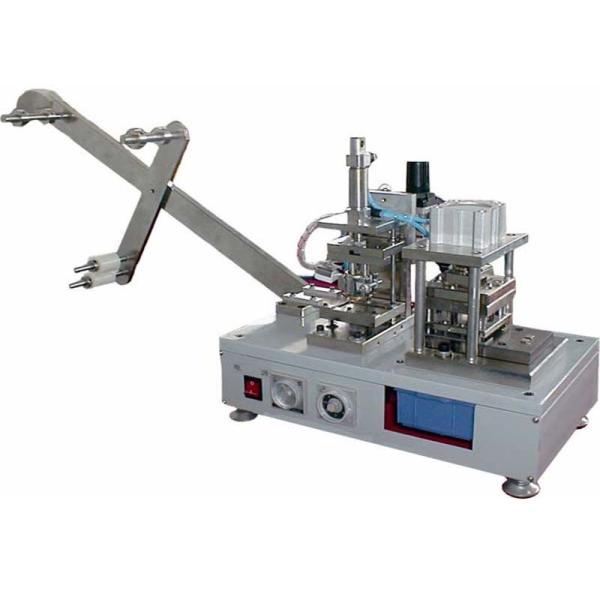

Semi-Automatic Contact IC Card Module Cutter YMC-1 Designed For Cutting The Single IC Chips

IC chip cutter, IC chip tape puncher, IC module tape cutter, IC card machine, smart card machine

1. Introduction of Semi-Automatic Contact IC Card Module Cutter YMC-1 Designed For Cutting The Single IC Chips

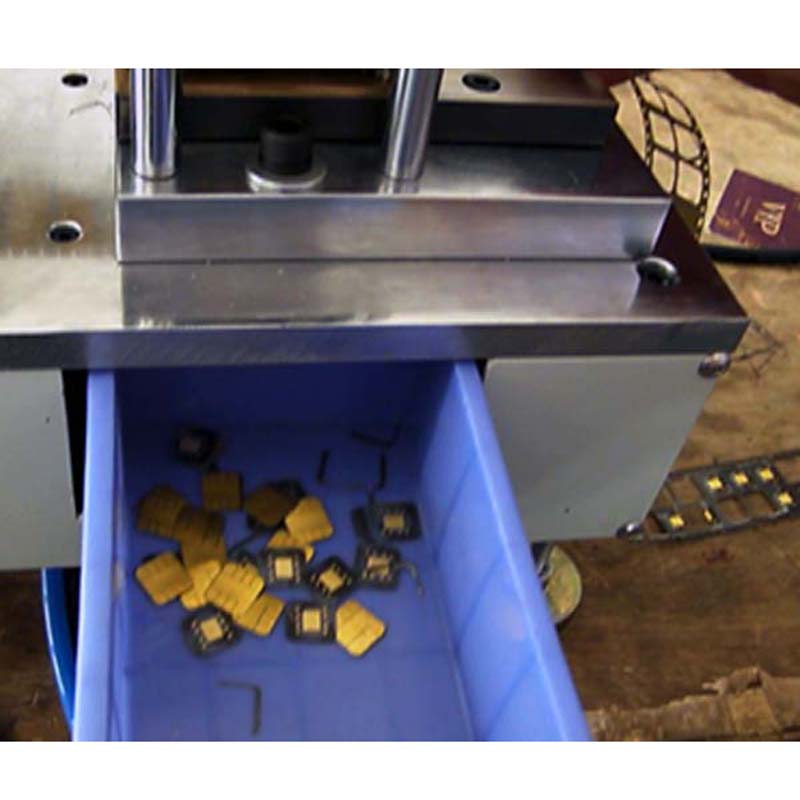

The machine is designed for cutting the single IC chips from the IC Module tape after the hot melt glue is pressed to the IC module bottom side.

Basic configuration

Material releasing (glue tape wheel and chip reel wheel) →hot pressing station (stick the glue tape onto chip bottom by hot lamination)→chip cutting station( cut the chip tape into single pieces)→chip collection unit

1. ) Speed: 4000-6000 units per hour
2. ) Material model: M2/M3 standard chip tape
3. ) Compressed air: 6 kg/cm²
4. ) Air Consumption: 10 L/min.
5. ) Power:0.4KW
6. ) Power supply: AC220V 50/60HZ4
7. ) Weight: 30 KG
8. ) Dimension: L600×W300×H300mm

2. Features of Semi-Automatic Contact IC Card Module Cutter YMC-1 Designed For Cutting The Single IC Chips

• It is controlled by relay unit with easy maintenance.
• All the pneumatic parts are made by SMC to ensure quality operation.

3. Technical Parameter of Semi-Automatic Contact IC Card Module Cutter YMC-1 Designed For Cutting The Single IC Chips

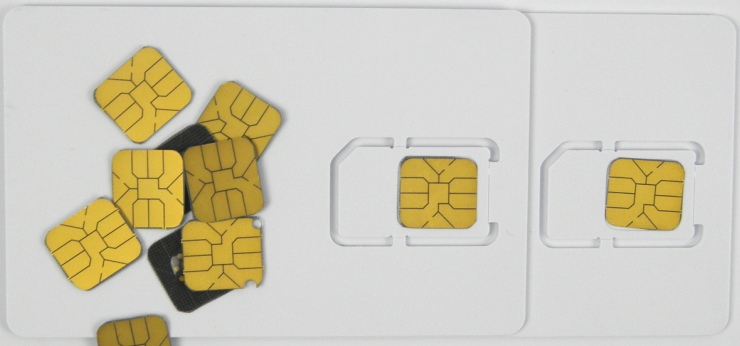

4. Application of Semi-Automatic Contact IC Card Module Cutter YMC-1 Designed For Cutting The Single IC Chips

Based in China, with quality products, competitive price and services, we have been serving the card industry worldwide for over ten years. We have established long-term business cooperation with many customers located in nearly 40 countries worldwide including USA, Canada, Mexico, Chile, Argentina, Russia, India, Malaysia, Thailand, etc.
