6-Pin Chip And 8-Pin Chip Contact IC Chip Tape Glue Preparation
Machine YCGP-1 With Hot Welding Glue Preparation Tech

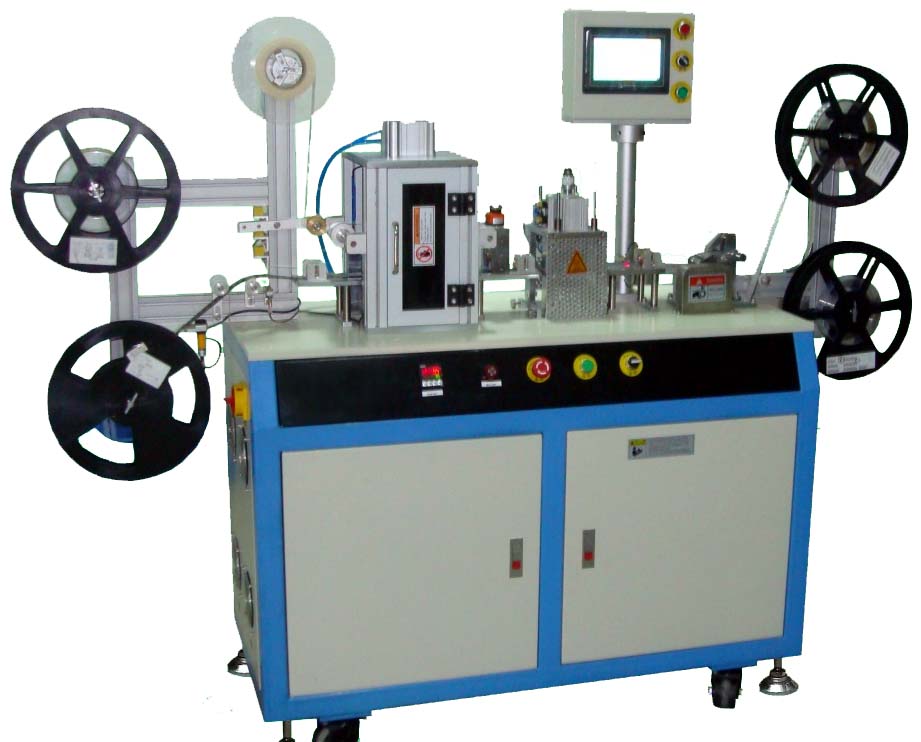

IC Chip Tape Glue Preparation Machine YCGP-1
Contact IC Chip Glue Applicator, Contact IC Card Machine, IC Chip
Tape Glue Pastor, IC Card Machine
1. Introduction of 6-Pin Chip And 8-Pin Chip Contact IC Chip Tape
Glue Preparation Machine YCGP-1 With Hot Welding Glue Preparation
Tech
The machine is automatically controlled by PLC program. The
imported high-quality stepper motor is used to transport IC module
strip and hot melt glue for precise glue preparation. The
production speed is fast and the glue preparation precision is
high.
2. Features of 6-Pin Chip And 8-Pin Chip Contact IC Chip Tape Glue Preparation
Machine YCGP-1 With Hot Welding Glue Preparation Tech
It integrates the transportation of IC module strip and hot melt
adhesive strip, glue flushing, hot welding preparation and finished
product collection.
1) the hot welding glue preparation welding head adopts automatic
correction and balance structure design, so that the glue
preparation effect is better and the debugging is more convenient.
2) the hot welding and glue punching molds are equipped with
position fine-tuning mechanism, which makes the punching precision
higher and the operation more convenient.
3) reasonable mold structure design can ensure easy and convenient
replacement. When preparing glue for different types of IC modules,
it can be completed only by replacing the mold.
4) the stepping position of IC module is automatically monitored
and protected by electric sensor eye. If the position is incorrect,
it will automatically alarm and display shutdown.
5) the material belt will automatically discharge and receive
materials. If there is no material in the feed, it will
automatically alarm and shut down.
3. Technical Parameter of 6-Pin Chip And 8-Pin Chip Contact IC Chip Tape Glue Preparation
Machine YCGP-1 With Hot Welding Glue Preparation Tech
| Power | AC220V 50/60 HZ | operator | 1 person |
| Main Power | Around 1.0 KW | Speed | 9000~12000chips/hour( 2 times of hot welding) |
| Compressed air | 6kg/cm²(dry oil free) | 15000~18000chips/hour( 1 time of hot welding) |
| Air comsupmtion | Around 30L/min | Bonding mode | Hot melt glue(like Tesa 8410, Scapa G175 or similar) |
| NW | Around 400Kg | Module specification | ISO standard contact IC card chip tape (M3/8-pin & M2/6-pin) |
| Control mode | PLC+stepper system | Machine size | Around L1700×W800×H1600mm
|
4. Application of 6-Pin Chip And 8-Pin Chip Contact IC Chip Tape
Glue Preparation Machine YCGP-1 With Hot Welding Glue Preparation
Tech
It is applicable to the preparation and processing of various types
of contact IC chip or module tape (such as 6-pin chip and 8-pin
chip).
