Contactless Card Antenna Embedding Machine RFID Inlay Prelam Line YAE-25

1. Introduction of Contactless Card Antenna Embedding Machine RFID Inlay Prelam Line YAE-25

This machine is designed for embedding or implanting the copper wire onto INLAY middle sheets as per the designed track with advanced ultrasonic technology.

Contactless Card Antenna Embedding Machine/RFID Card INLAY Sheet Antenna Implanting Machine/Prelam Sheet Antenna Implanter YAE-25

2. Features of Contactless Card Antenna Embedding Machine RFID Inlay Prelam Line YAE-25

• It is well known as the most reliable and economical machines in INLAY sheet production.
• Mitsubishi 3-axis servo control and MOXA motion control system are applied in the control system to ensure high position precision.
• The antenna shape and size can be easily designed in AUTOCAD software.
• The antenna embedding applies the advanced ultrasonic technology in order to ensure good embedding result and high efficiency.

3. Technical Parameter of Contactless Card Antenna Embedding Machine RFID Inlay Prelam Line YAE-25

1. ) Speed: 1500-2000 pcs per hour.

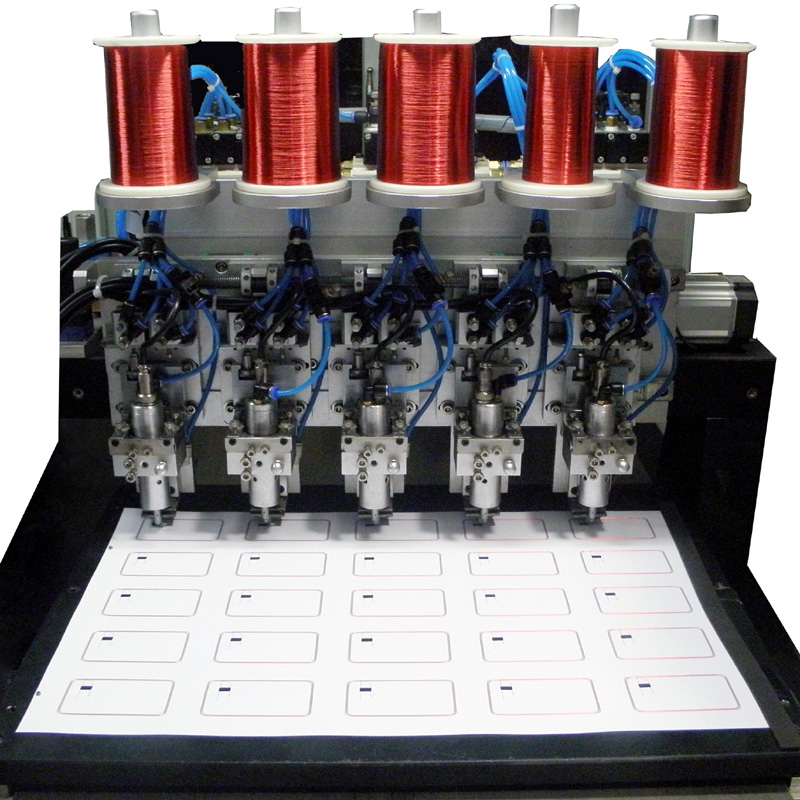

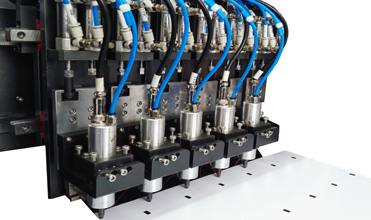

2. ) Embedding head number: 5 heads for 5*5 layout.
3. ) Worktable number: 2 worktables
4. ) Dimension: L1750×W1150×H1600mm
5. ) Weight: 1500 KG
6. ) Power supply: AC220V 50/60HZ 25A
7. ) Power: 3KW
8. ) Compressed air: 6 kg/cm²
9. ) Air Consumption: 80 L/min.
10. ) Control mode: MOXA motion contorl+Mitsubishi servo
11. ) Precision: servo step indexing=0.0125
12. ) Mechanical adjustment precision: 0.01mm.

4. Application of Contactless Card Antenna Embedding Machine RFID Inlay Prelam Line YAE-25

As an indispensable machine of RFID card INLAY production line, Contactless Card Antenna Embedding Machine YAE-25 is also known or named as RFID Card INLAY Sheet Antenna Implanting Machine, RFID Card Prelam Sheet Antenna Implanter or Contactless Card Copper Wire Embedder YAE-25.

Automatically embed or implant the designed copper wire antenna onto INLAY middle sheet in a precise way. Usually there are three sheets to be laminated into one INLAY sheet.

Machine model needed:

Contactless Card Antenna Embedding Machine YAE-25 (5 embedding heads/2 work tables for sheet layout 5*5)

Machine quantity needed:

Contactless Card Antenna Embedding Machine YAE-25 (1 set)

Speed: 1500-2000 pcs per hour.
