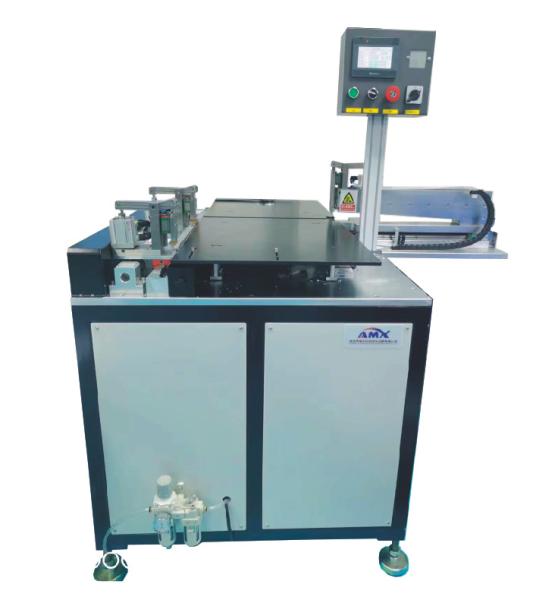

    Contactless Card Prelam hole puncher RFID Card INLAY Sheet Hole Puncher YHP-A+

    Ask Lasest Price
    Brand Name : YL
    Model Number : YHP-A+
    Price : negotiable
    Payment Terms : D/P, T/T, D/A, Western Union
    Supply Ability : 1 set per 20 days
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    Contactless Card Prelam hole puncher RFID Card INLAY Sheet Hole Puncher YHP-A+

    Contactless Card Prelam hole puncher RFID Card INLAY Sheet Hole Puncher YHP-A+


    1. Introduction of Contactless Card Prelam hole puncher RFID Card INLAY Sheet Hole Puncher YHP-A+


    RFID Card INLAY Sheet Hole Puncher YHP-A+ is designed to punch both two side position holes and chip fixing holes (like 24 hole for 3*8 layout) for installing COB chips in the INLAY sheet middle layer in the process of RFID card INLAY sheet production.



    Start massive production, and first of all punching side location holes (Usually 2 holes) and chip fixing holes (like 24 holes in 3×8 layout) in the INLAY middle sheet in one machine.


    Machine quantity needed: INLAY Sheet Hole Puncher YHP-A+, 1 set


    2. Features of Contactless Card Prelam hole puncher RFID Card INLAY Sheet Hole Puncher YHP-A+


    It can punch 2-3 sheets per time to ensure higher work efficiency.


    Speed(max)800-1000 sheets per hour
    Applicable layout:

    3×8, 4×8, 5×5 or 9×8( for 3-tag mini RFID card)

    Applicable material (carrier)Plastic materials like PVC, ABS and PETG
    DimensionL1350×W700×H1550
    Weightabout 150 KG
    Power supplyAC220V 50/60HZ
    Power1KW
    Compressed air5kg/cm2, 50L/min
    Number of punch die head3, 4, 5 or 8
    Precision0.05mm

    3. Technical Parameter of Contactless Card Prelam hole puncher RFID Card INLAY Sheet Hole Puncher YHP-A+



    1. Applicable layout: 3×8, 4×8, 5×5 or 9×8( for 3-tag mini RFID card)
    2. Applicable material (carrier) : Plastic materials like PVC, ABS and PETG
    3. Number of punch die head: 3, 4, 5 or 8
    4. Compressed air:5kg/cm2, 50L/min
    5. Speed (max.): 800-1000 sheets per hour
    6. Power supply :AC220V, 50/60HZ
    7. Position precision: 0.05mm
    8. Power:1kW
    9. Weight: around 150 kg
    10. Dimension:L1350×W700×H1550

    4. Application of Contactless Card Prelam hole puncher RFID Card INLAY Sheet Hole Puncher YHP-A+



    The positions of chip fixing holes to be punched are adjustable in a certain range by adjusting each punching mould position and/or the stepping distance inside the touch screen. It has one set of punching mould for standard big chip (chip size 5*8mm) in the default configuration. The punching mould for standard smaller chip (chip size 3.8*5.8mm for MoA8 chips) is optional.
