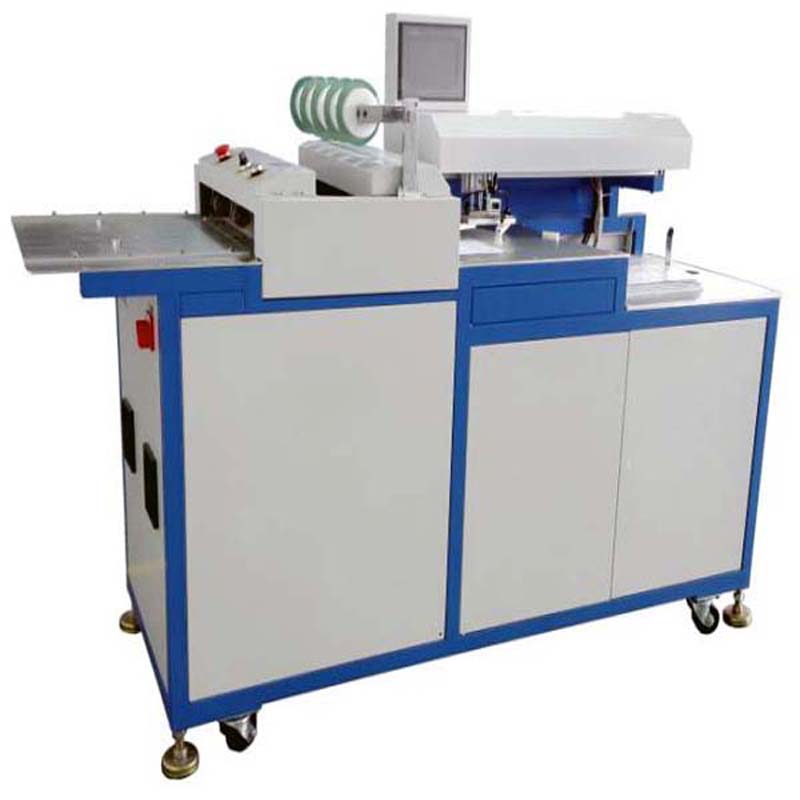

RFID Card Inlay Full Auto Inlay Sheet Glue Tape Pasting Machine
YGA-1000+
1. Product Introduction of RFID Card Inlay Full Auto Inlay Sheet Glue Tape Pasting Machine
YGA-1000+
Full Auto Inlay Sheet Glue Tape Pasting Machine YGA-1000+ is
designed for automatically picking the Inlay middle sheet, pasting
the glue tapes and collecting the finished sheets in the process of
RFID Card INLAY or Prelam Sheet production.
The pasted glue tapes are used for temporarily sticking the COB
chips for the next step chip bonding process. It can greatly lower
the needed labor power and increase the work efficiency in the glue
tape pasting process.
2. Technical Specification of RFID Card Inlay Full Auto Inlay Sheet Glue Tape Pasting Machine
YGA-1000+
Automatically apply the green glue tape onto the chip holes in
INLAY middle sheet for sticking the chips temporarily.
Machine model needed: Full Auto Inlay Sheet Glue Tape Pasting Machine YGA-1000+
Machine quantity needed: 1 set
Machine Speed: 600+ sheets per hour
| Power supply | AC 220V 50/60 HZ | Control method | PLC + touch screen |
| Total power | 2 KW | Sheet layout | 5*5, 3*8, 4*8 or customized |
| Air source | 6kg/cm2 (dry) | weight | Approx 400 Kg |
| Dimension |
L2100xW880xH1700 mm
| Speed | 600-800 sheets/hour
|
3. Feature of RFID Card Inlay Full Auto Inlay Sheet Glue Tape Pasting Machine
YGA-1000+
- PLC is applied to control the machine operation with friendly
man-machine interface.
- Automatic sheet pick-placing system is available in the machine.
- Custom-made layout of INLAY sheets to be processed is available.
4. Application of RFID Card Inlay Full Auto Inlay Sheet Glue Tape
Pasting Machine YGA-1000+
The machine is also known as glue tape pastor or applicator, glue
tape application machine, glue tape pasting machine, RFID card
INLAY or Prelam sheet production machine or contactless card
production machine.
