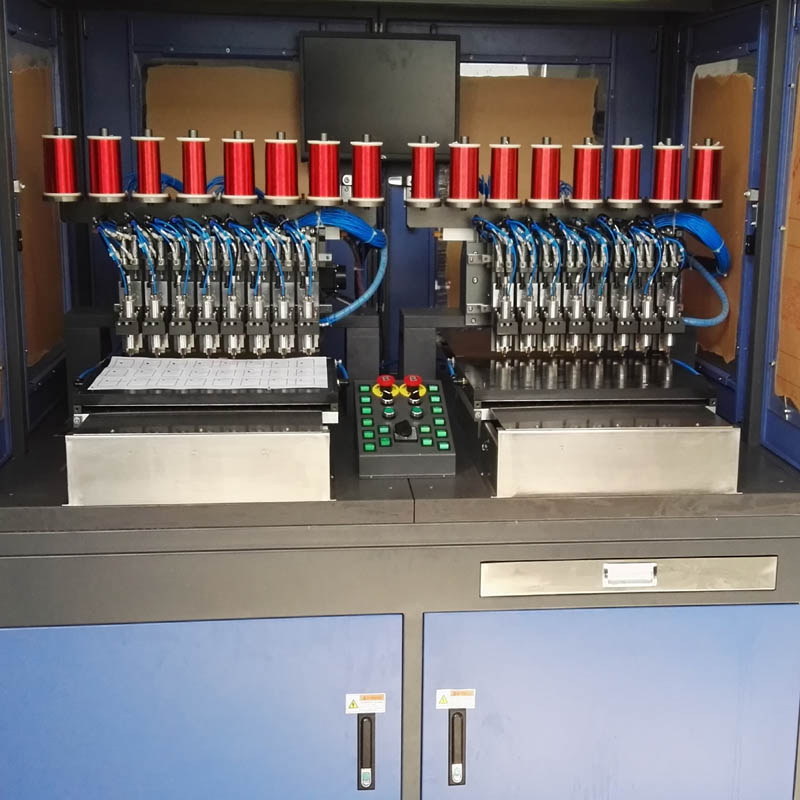

    Prelam Sheet Antenna Implanter 16 Embedding Heads for RFID Card INLAY YAE-216

    Ask Lasest Price
    Brand Name : YL
    Model Number : YAE-216
    Price : negotiable
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 set per year
    Delivery Time : 25-35days
    • Product Details
    • Company Profile

    Prelam Sheet Antenna Implanter 16 Embedding Heads for RFID Card INLAY YAE-216

    Prelam Sheet Antenna Implanter 16 Embedding Heads for RFID Card INLAY YAE-216

    1. Machine Introduction of Prelam Sheet Antenna Implanter 16 Embedding Heads for RFID Card INLAY YAE-216

    It is mainly used for the production and embedding of Low frequency and high frequency coils of contactless cards
    It uses the domestic ultrasonic embedding technology to embedding the wire. Just need one person to operate, which save the labor and reduce costs, at the same time, ensure the quality of the products.
    In the machine structure, the machine is easy to operate and maintain,which enhances the service life of machine and the productivity.


    As an indispensable machine of RFID card INLAY production line, Contactless Card Antenna Embedding Machine YAE-216 is also known or named as RFID Card INLAY Sheet Antenna Implanting Machine, RFID Card Prelam Sheet Antenna Implanter or Contactless Card Copper Wire Embedder YAE-216.


    2. Characters of Prelam Sheet Antenna Implanter 16 Embedding Heads for RFID Card INLAY YAE-216

    It is well known as the most reliable and economical machines in INLAY sheet production.

    Mitsubishi 3-axis servo control and MOXA motion control system are applied in the control system to ensure high position precision.

    The antenna shape and size can be easily designed in AUTOCAD software.

    The special worktable design is available to ensure that various sheet layout (3×8/4×8/5×5) can be embedded in the same machine.

    The antenna embedding applies the advanced ultrasonic technology in order to ensure good embedding result and high efficiency.


    Production Speed3000-3500 pcs per hour
    Embedding head number16 heads
    Operation platform2 worktables
    DimensionL1750×W1150×H1600mm
    Weightaround 1200 KG
    Compressed air6 kg/cm2
    Air Consumption100L/min.
    Control modeMOXA motion contorl+Mitsubishi servo
    Precision:servo step indexing=0.0125
    Mechanical adjustment precision0.01mm.
    Power supplyAC220V 50/60HZ 25A
    Power3 KW



    Model NOYAE-216
    Embedding head number16 heads
    Operation platform2 worktables
    Performance ClassificationHigh-End CNC Machine Tools
    Processing Precision0.01~0.02(mm)
    Machine ConditionBrand new machine
    OriginChina
    Production Capacity50set/Year
    Transport PackagePlywood case



    3. Technical Parameter of Prelam Sheet Antenna Implanter 16 Embedding Heads for RFID Card INLAY YAE-216

    1. Speed: 3000-3500 pcs per hour.

    2. Embedding head number: 16 heads

    3. Worktable number: 2 worktables

    4. Dimension: L1750×W1150×H1600mm

    5. Weight: 1100 KG

    6. Power supply: AC220V 50/60HZ 25A

    7. Power: 4KW

    8. Compressed air: 6 kg/cm2

    9. Air Consumption: 160L/min.

    10. Control mode: MOXA motion contorl+Mitsubishi servo

    11. Precision: servo step indexing=0.0125

    12. Mechanical adjustment precision: 0.01mm.





    4. Our service :
    Pre-sale
    (1) Professional suggestions (raw material matching, machine selection, the condition of building factory, feasibility analysis for brick machine production line)
    (2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
    (3) Efficient on-line service
    (4) Welcome to visit our factory and production line any time, if you need, we can make invitation letter for you.
    (5) Introduce the company file, product categories and production process.
    Sale:
    (1) Update the production scheduling in time
    (2) Quality supervision
    (3) Product acceptance
    (4) Shipping on time
    After-sale:
    (1) The engineer will guide to carry out the plant at the clients side if needed.
    (2) Set up, fix, and operate
    (3) offer training to the operator until they are satisfied at clients side.
    (4) Skill support the whole using life.
    (5) Recall clients regularly ,get feedback in time ,keep well communication with each other
