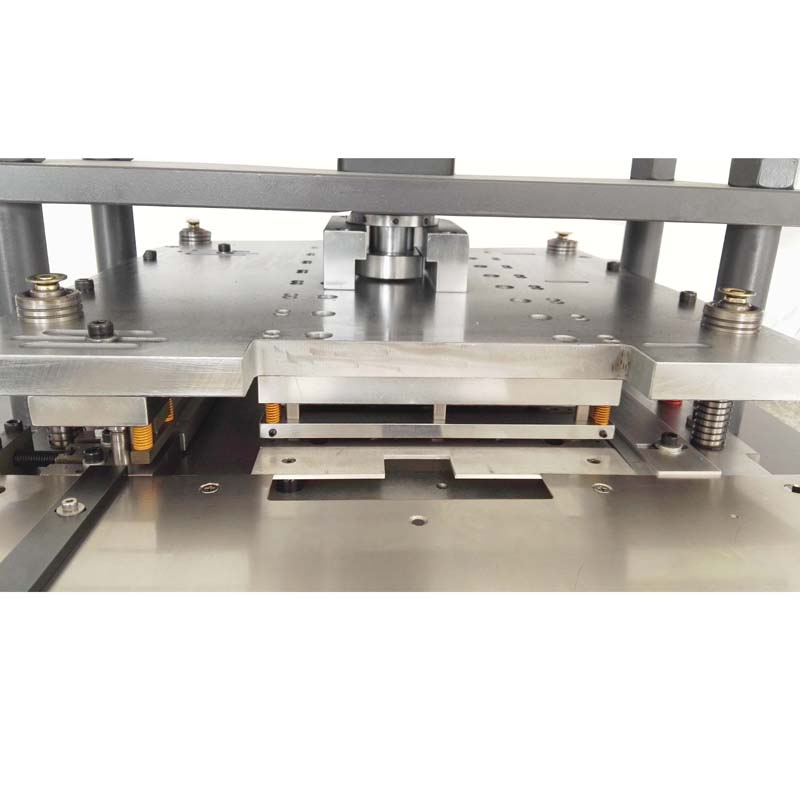

INLAY Sheet Hole Puncher/Prelam Sheet Hole Puncher/ RFID Card Inlay Sheet Chip Hole Die Cutter YHP-4000

1. Introduction of INLAY Sheet Hole Puncher/Prelam Sheet Hole Puncher/ RFID Card Inlay Sheet Chip Hole Die Cutter YHP-4000

The machine is specially designed for punching the side positioning holes (Usually two holes) and contactless or RFID card chip fixing holes on INLAY middle sheet at the same time.

2. Features of INLAY Sheet Hole Puncher/Prelam Sheet Hole Puncher/ RFID Card Inlay Sheet Chip Hole Die Cutter YHP-4000

• The position precision of all the punched holes is made accurate because all the holes are punched at the same time.
• It features very high speed, very easy operation and very high precision.
• The mechanical structure is so reasonably designed that the punch mould can be easily changed as per the different INLAY sheet layout (such as 3×8, 4×8 and 5×5 layout).

3. Technical Parameter of INLAY Sheet Hole Puncher/Prelam Sheet Hole Puncher/ RFID Card Inlay Sheet Chip Hole Die Cutter YHP-4000

• Speed: 800-1200 sheets per hour.
• Operator needed: 1 person
• Compressed air: 5-6kg/cm2 30 liters/minute
• Gross weight: 18 kg
• Dimension: L600×W550×H800

4. Application of INLAY Sheet Hole Puncher/Prelam Sheet Hole Puncher/ RFID Card Inlay Sheet Chip Hole Die Cutter YHP-4000

Start massive production, and first of all punching chip fixing holes for installing built-in module in the process of contactless card INLAY sheet production. (like 24 holes in 3×8 layout) in the INLAY middle sheet in one machine.

Machine quantity needed:

INLAY Sheet Hole Puncher YHP-4000, 1 set

As an indispensable machine of RFID card Inlay sheet production line, it is also known or named as RFID Card INLAY Sheet Hole Puncher, Automatic Prelam Sheet Hole Puncher or RFID Card Inlay Sheet Chip Hole Die Cutter YHP-A.

Based in China, with quality products, competitive price and services, we have been serving the card industry worldwide for over ten years. We have established long-term business cooperation with many customers located in nearly 40 countries worldwide including USA, Canada, Mexico, Chile, Argentina, Russia, India, Malaysia, Thailand, etc.
