Contactless IC Module Picking-Placing Machine For Different RFID Inlay Sheet Layout YPP-4000

Contactless IC Module Picking-placing Machine/RFID Card INLAY Sheet Chip Pick-placer/RFID Card Prelam Chip Implanting Machine YPP-4000

1. Introduction of Contactless IC Module Picking-Placing Machine For Different RFID Inlay Sheet Layout YPP-4000

This machine is designed for precisely placing the single contactless IC chip onto chip fixing holes in the INLAY sheet. In order to ensure chip fixing precision, the IC chips are picked and placed with vacuum after air cylinder holds the PVC sheet to ensure its flatness.

2. Features of Contactless IC Module Cutter For RFID Chip 5*8mm COB Chip Tape Die Cutter YMC-2

The machine-Contactless IC Module Picking-placing Machine YPP-4000 is also known or named as RFID Card INLAY Sheet Chip Pick-placer, RFID Card Prelam Chip Implanting Machine or RFID Chip Implanter YPP-4000.

• Photoelectric sensor is applied to monitor and control the chip feeding. If failure or mistake occurs, it will give warning and stop the machine.
• High-precise dual-axles are used to pick, move and place the chips with PLC controlled in order to ensure high position precision.
• Picking or placing location for each module can be individually adjusted to ensure high precision of positioning.

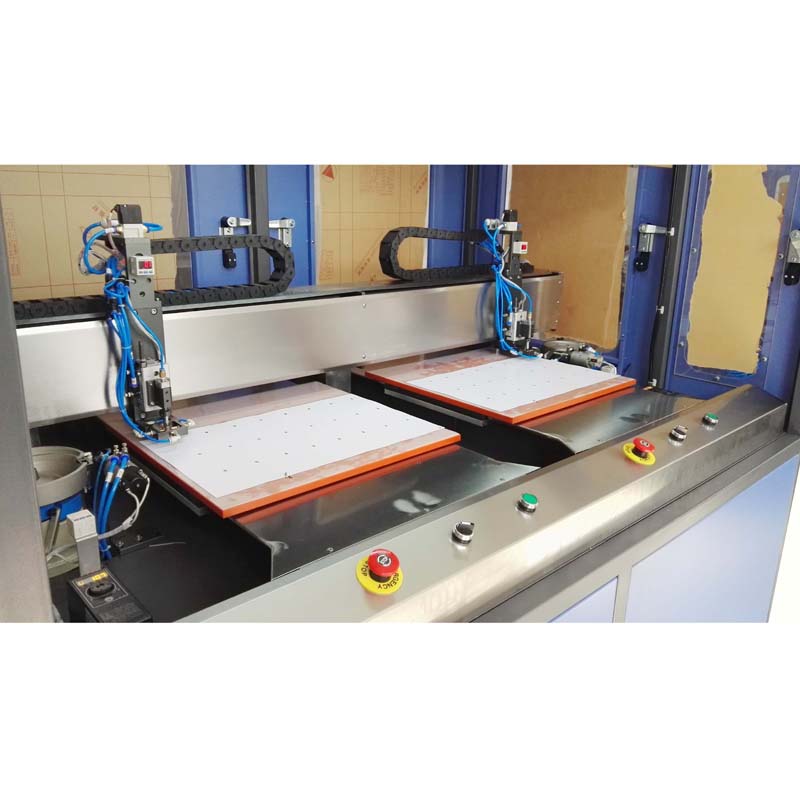

• It is designed to have two picking-placing units and two working tables to ensure high efficiency.
• The liquid glue injection unit is available in the latest design.
• It is controlled by Mitsubishi PLC with big-size colorful man-machine interface display. All the pneumatic parts are made by SMC.
• Different sheet layout (such as 3×8/4×8/5×5) can be proceeded on the same machine.

3.Technical Parameter of Contactless IC Module Cutter For RFID Chip 5*8mm COB Chip Tape Die Cutter YMC-2

1. ) Speed: 4000-4500 pcs per hour.
2. ) Dimension: L1600×W700×H1900mm
3. ) Weight: 650 KG
4. ) Power supply: AC220V 50/60HZ
5. ) Power: 3KW
6. ) Compressed air: 6 kg/cm2
7. ) Air Consumption: 30 L/min.
8. ) Control mode: PLC+ dual-axis location system
9. ) Chip positioning precision: ±0.05mm

4.Application of Contactless IC Module Cutter For RFID Chip 5*8mm COB Chip Tape Die Cutter YMC-2

Automatically pick and place each single chip into chip fixing holes in the INLAY middle sheet in a faster and precise way.

Machine model needed: Contactless IC Module Picking-placing Machine YPP-4000

Machine quantity needed: 1 set

Machine Speed: 4000-4500 pcs per hour.
