Speedy Full Auto Inlay Sheets Chip Pick-placing COB Implanting Machine YPP-8000

1. Introduction of Speedy Full Auto Inlay Sheets Chip Pick-placing COB Implanting Machine YPP-8000

Contactless card Industry is booming nowadays and has been one of the quickest developing markets in this field. Card manufacturer needs reliable and cost-effective contactless card producing equipment to catch this historic
opportunity.
This machine is specially designed for picking and placing the RFID Card Inlay sheet chips into the chip fixing holes in the Inlay or prelam middle sheets for RFID card production purpose in a precise and speedy way. The device adopts high-precision double-axis system to pick, move and place the chips with the accurate control by PLC. It is much faster than the existing single head model YPP-4000. It can be customized according to the customer's special layout and requirements.

2. Description of Speedy Full Auto Inlay Sheets Chip Pick-placing COB Implanting Machine YPP-8000

• Photoelectric sensor is applied to monitor and control the chip feeding. If failure or mistake occurs, it will give warning and stop the machine.
• High-precise dual-axles are used to pick, move and place the chips with PLC controlled in order to ensure high position precision.
• Picking or placing location for each module can be individually adjusted to ensure high precision of positioning.
• It is designed to have two picking-placing units and two working tables to ensure high efficiency.
• The liquid glue injection unit is available in the latest design.
• It is controlled by Mitsubishi PLC with big-size colorful man-machine interface display. All the pneumatic parts are made by SMC.

3. Main Features of Speedy Full Auto Inlay Sheets Chip Pick-placing COB Implanting Machine YPP-8000

1. Speed: around 8000 chips per hour.

2. Dimension: L2800×W1200×H1700mm

3. Weight: around 1200 KG

4. Power supply: AC220V 50/60HZ

5. Power: 5KW

6. Compressed air: 6 kg/cm2

7. Air Consumption: 30 L/min.

8. Control mode: PLC+ dual-axis location system

9. Chip positioning precision: ±0.05mm

10. Inlay Sheet layout: 5*5, 3*8, 4*8, 6*8 or customized.

11. Number of Work tables: 4


4. More details of Speedy Full Auto Inlay Sheets Chip Pick-placing COB Implanting Machine YPP-8000

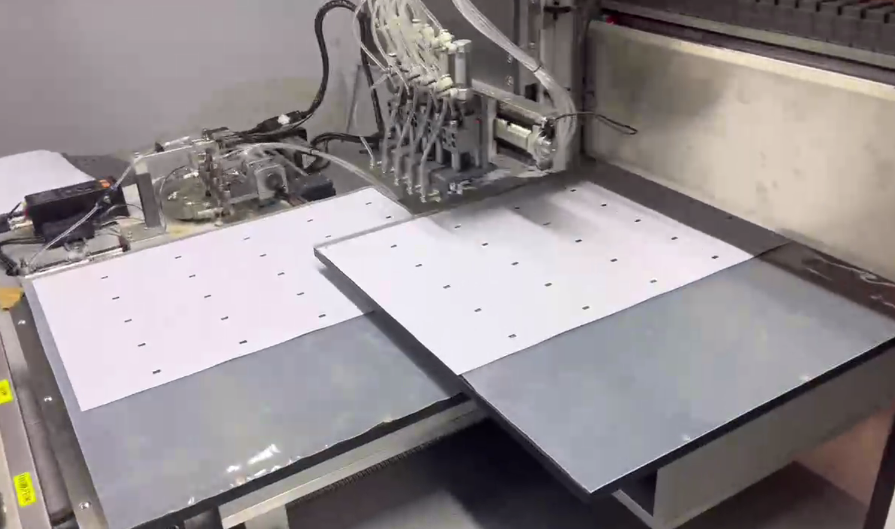

Totally it has two models-YPP-8000-10H and YPP-8000-16H. As for the model YPP-8000-10H, it has two 5-head chip pick-placing units with four worktables are applied to work with the sheet of 5*5 layouts. As for the model YPP-8000-16H, it has two 8-head chip pick-placing units with four worktables are applied to work with the sheet of 3*8, 4*8 or 6*8 layout.

The chip module pick and place machine use to Auto placing the chip modules, only need one operator. The machinery automation technologies instead of the traditional manual way to embedding the chip, which save the labor and reduce costs, at the same time, ensure the quality of the products.
Glue system all adopt servo motor control, is much more precisely.
In the machine structure, the machine is easy to operate and maintain, which enhances the service life of machine and the productivity.
The appearance and style of the machine is concise and easy, rationalization and hommization, and the user-friendly operator interface protect the safety of operators. We can also design the different style appearance according to different requirements.


5. Our service :
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, the condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) Efficient on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can make invitation letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other

Based in China, with quality products, competitive price and services, we have been serving the card industry worldwide for over ten years. We have established long-term business cooperation with many customers located in nearly 40 countries worldwide including USA, Canada, Mexico, Chile, Argentina, Russia, India, Malaysia, Thailand, etc.
