Multicolor DOD Card Personalization Machine Card Data Personalization Machine​ YDP-MC

1. Introduction of Multicolor DOD Card Personalization Machine Card Data Personalization Machine​ YDP-MC

Multicolor DOD Card Personalization Machine/Card Data Personalization Machine/ Drop-on-demand Colorful Inkjet Card Printer/Magnetic and RFID Card Encoder/All-in-one Card Personalization Line/All-in-one CMYK 4-color DOD inkjet printer and Card Issuer YDP-MC

Multicolor DOD Card Personalization Machine YDP-MC is designed to print cards with 4-color CMYK inks in a precise and high resolution way.It applies high-speed and reliable Japanese RICOH printing head.

2. Machine Functional Configuration of Multicolor DOD Card Personalization Machine Card Data Personalization Machine​ YDP-MC

Card feeder (CR80 standard size)-RFID Chip Encoding Unit-Plasma treatment unit-DOD 4-color DOD inkjet Printing unit (54mm wide RICOH) - LED UV Solidification unit -Card Collection unit

Note: The multicolor DOD printing line is of modular design with good compatibility. The optional functional modules can be added in the above line to realize more functions of card personalization process. The optional modules include magnetic stripe encoding unit, RFID Card chip encoding unit, OCR inspection unit, Scratch card labeling unit and laser engraving Unit.

The functional modules are described as below:

1. RFID Chip encoding unit (HF/LF)(Contactless or RFID Card encoder/RFID chip reader&writer)

It can read UID from almost all the RFID card chips (HF/LF chip) in the existing market. It can writing data, change initial passwords or sect keys in such RFID chips including Mifare S50, S70, Ultralight, Ultralight-C, Mifare Plus, Ntag203, Ntag213, Ntag216, Icode-2, FM11RF005M, EM4100(ID), ATA5577, EM4305). Speed: 7000 card/h in reading mode or 2000-4000 cards/H in writing mode, if the data to be encoded is bigger in size, the writing speed is slower.

2. Magnetic stripe encoder (magnetic stripe reader/magnetic stripe writer/magnetic encoding unit)

It can encode three tracks or any single or two tracks in magnetic stripe of various magnetic cards(excluding financial bank card) in a speedy and precise way, but the magnetic cards encoded by the Chinese module cannot fully meet the strict specification of ISO 7811 for high-end financial bank cards.Speed: 7000-8000cards/hour. If you need encode the magnetic stripe of financial bank cards, we can add German magnetic card encoder in our personalization line.

3. OCR inspection unit (OCR inspector/OCR verification unit/OCR verifier)

It is designed for identifying or reading the number, barcode, QR code printed on card surface to compare with the database to check the correctness of DOD printing. Speed: 7000-8000cards/hour.

4. Scratch labeling unit (scratch label paster/scratch labeller/scratch label applicator)

It is designed for applying or sticking the scratch-off label(s) onto the card surface after DOD printing. It can apply several labels (2, 3 or 4 ) on the card surface at the same time. Speed: 7000-8000cards/hour.

5. Laser engraving unit (laser marker/laser printer/laser etching unit/laser coding unit)

There are three types of laser units to be chosen. They are carbon dioxide CO2 type, optical fiber type and ultraviolet type. It can precisely engrave or mark serial numbers, English letters, logo, QR code, pictures and so on.

3. Technical Parameters of Multicolor DOD Card Personalization Machine Card Data Personalization Machine​ YDP-MC

1. ) Speed: 8000-10000 cards/hour (print-only mode)
2. ) Print head and Max. printing width: RICOH Z5, 54mm, CMYK 4 colors
3. ) printing resolution: 360-720 DPI adjustable
4. ) Speed for Best printing quality: 30 meters/min.
5. ) Compressed air: 6KG/CM2, 30L/min.
6. ) Power supply: AC220V, 50/60HZ, 10KW
7. ) LED UV Wave length and Power: 395NM, 400W.
8. ) Control mode: Industrial computer + motion control system
9. ) Net Weight: around 600-1500kg as per different configuration
10. ) Machine size: around L(3000-7000)mm×W650mm×H1680 mm

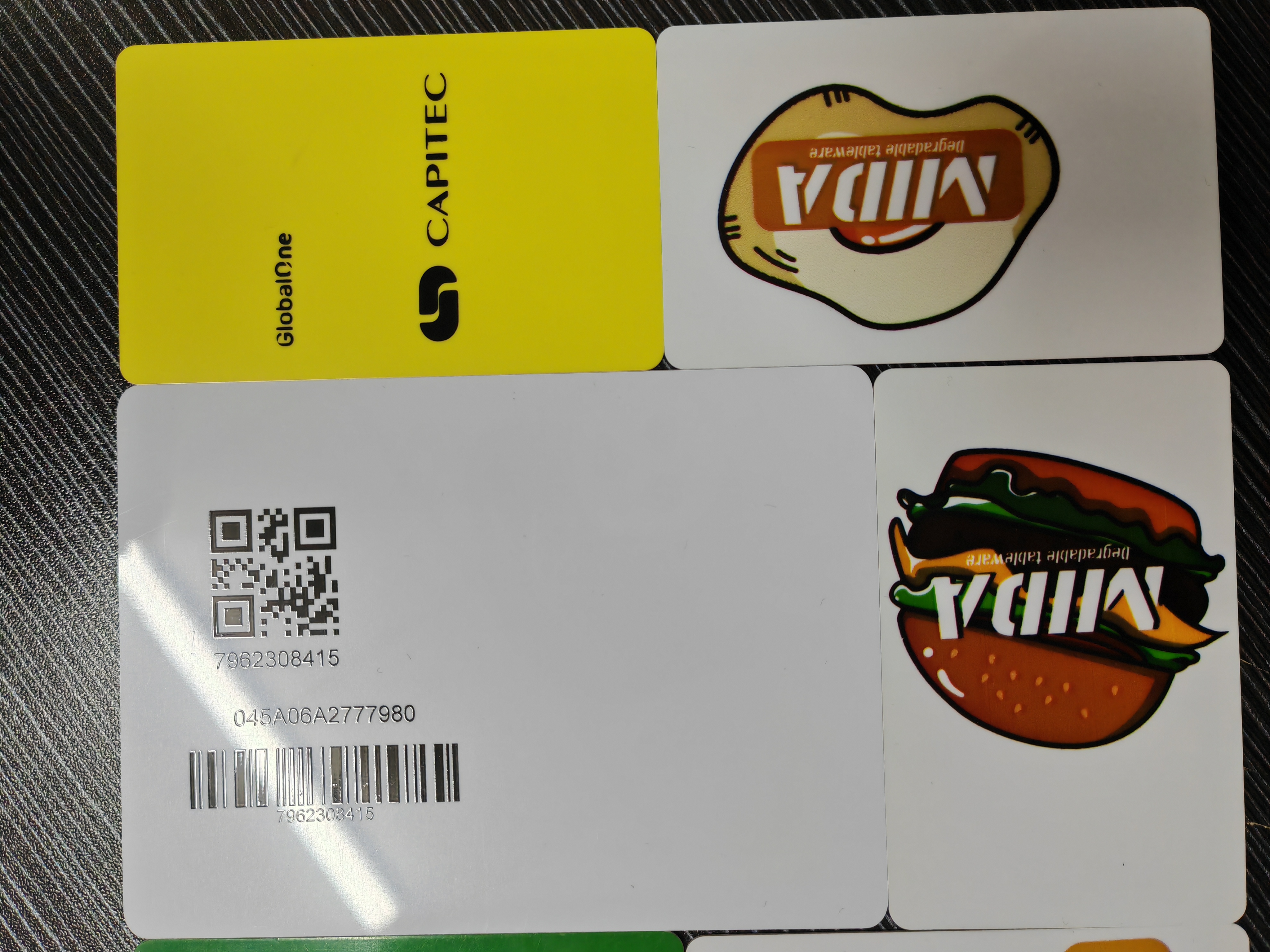

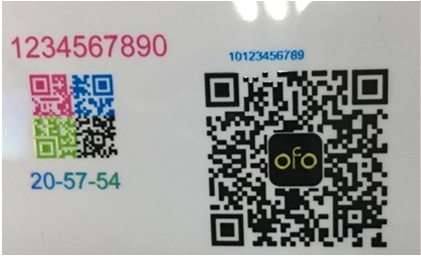

4. Application of Multicolor DOD Card Personalization Machine Card Data Personalization Machine​ YDP-MC

Note: The multicolor DOD printing line is of modular design with good compatibility. The optional functional modules can be added in the above line to realize more functions of card personalization process. The optional modules include magnetic stripe encoding unit, RFID Card chip encoding unit, OCR inspection unit, Scratch card labeling unit and laser engraving Unit.
