Grained Finish Card Lamination Steel Plate 1.0mm Customized Size MSP-GR with Round Curved Corners

1. Introduction of Grained Finish Card Lamination Steel Plate 1.0mm Customized Size MSP-GR with Round Curved Corners

They are applied as the consumables in plastic card lamination. It can well ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.

Card steel plate has the advantage of good conducting of heat,resisting pressure,high quality graine steel plate. By our steel plates you can produce the international standard card.The more than 10 years of experience of marketing and marketing operation make us choose the best quality steel plates for all our widely card making customers.

2. Key features of Grained Finish Card Lamination Steel Plate 1.0mm Customized Size MSP-GR with Round Curved Corners

1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.

2. Two sides are made matte in the same quality.

3. There are no scratches, dents, stripes shadows and dust on plate surfaces.

4. The edges are smooth and deburred with the round curved corners.

5. After lamination, the plates are not sticking to the laminated plastic sheets.

3. Technical Parameter of Grained Finish Card Lamination Steel Plate 1.0mm Customized Size MSP-GR with Round Curved Corners

Plate size(L×W): A4, A3 or custom-made size

Plate thickness: 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)

Dimension tolerance: ±1mm for length and width.

Plate flatness level: maximum 1 mm / m

Surface roughness value range: 2.5 - 6.0 μm

Slight Grain Steel plate ( Ra 2.5 - 3.0 μm )

Heavy Grain Aluminum plate ( Ra 5.5- 6.0 μm )

Surface hardness: HRC26±2

Thermal transmission: 0.04cal/℃.cm.sec at 20℃

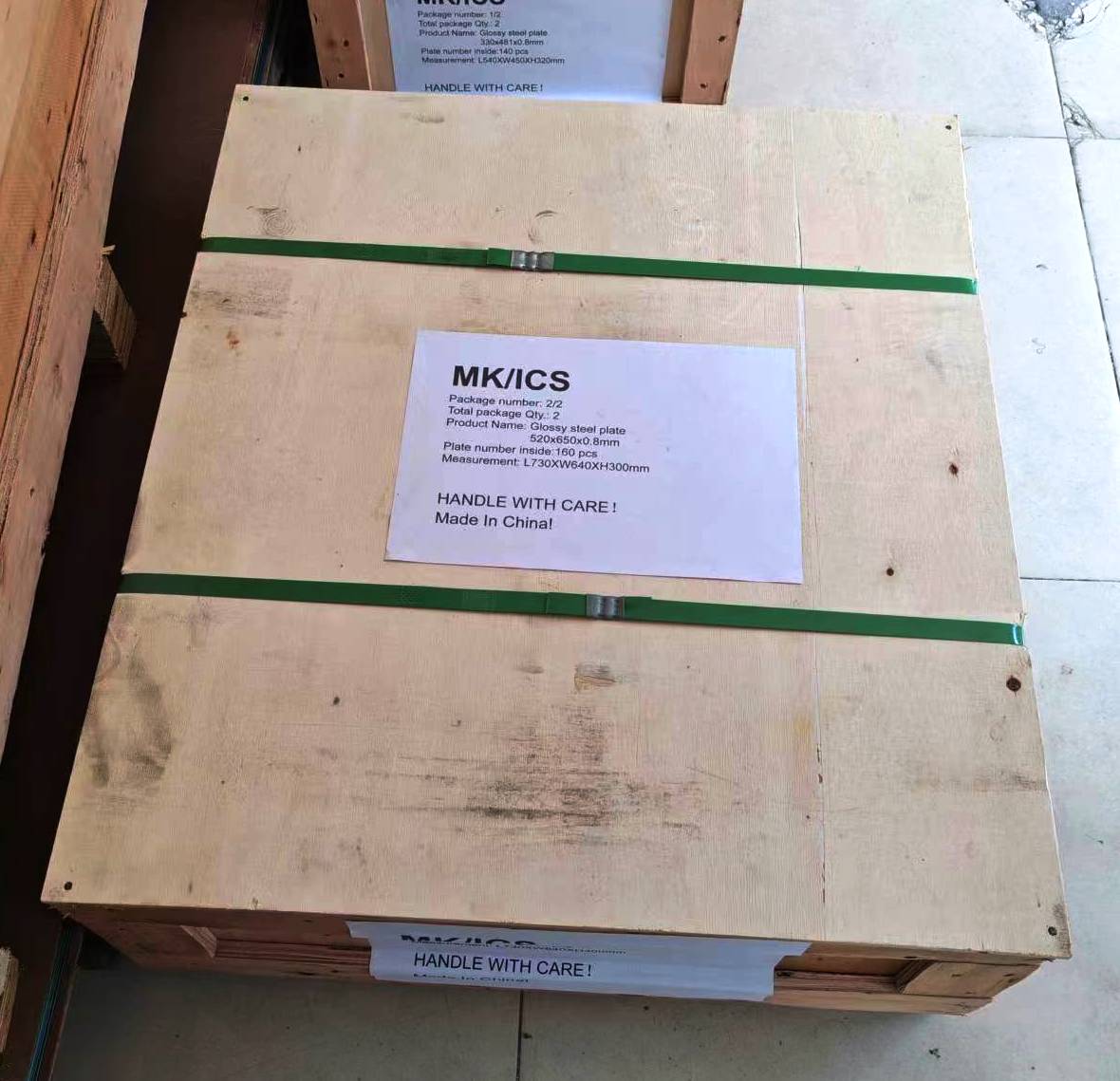

Packaging box: solid plywood carton with soft cushion protection inside.

4. More details of Grained Finish Card Lamination Steel Plate 1.0mm Customized Size MSP-GR with Round Curved Corners

Grained Finish Card Lamination Steel Plate MSP-GR is also known or named card lamination steel plate, laminator steel plate, Heavy / Middle / Slight Grained laminating steel plate, Grained steel plate for card laminator, Grained card finish lamination plate, card production material

There are five kinds of steel plates:

1. Glossy steel plates

2. Matte steel plates

on thee surface there are tiny lights,thin and lubricious,for planographic code and inkjet code.

3. Silk matte steel plates

4. Grained matte steel plates

5. Special pattern steel plates

Size: 100mm*120mm;210mm*297mm;210mm*320mm;325mm*480mm;340mm*500mm or customized

Thickness: 0.6mm, 0.8mm, 1mm
