    Full Automatic Plastic Card Puncher YLFP-1 For CR 80 PVC Card punching

    Full Automatic Plastic Card Puncher YLFP-1 For CR 80 PVC Card Punching


    Full Automatic Plastic Card Puncher/Full Auto Plastic Card Puncher/Full Auto Card Punching Machine/Card Die Cutter/Card Die Cutting Machine YLFP-1

    (Plastic card sheet puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)


    1. Introduction of Full Automatic Plastic Card Puncher YLFP-1 For CR 80 PVC Card Punching


    The machine is designed to meet the functional requirements of automatic CR80 standard plastic card punching in a precise way. The machine can automatically pick, place and feed the printed card sheets in an accurate way. It is controlled by PLC with English touch screen display. It features very speedy and precise punching performance.



    2. Features of Full Automatic Plastic Card Puncher YLFP-1 For CR 80 PVC Card Punching


    • The material feeding system applies high sensitivity positioning sensor plus quality precision ball screw to ensure precise positioning. Location parameters of each punching point are adjustable.
    • It applies high-power servo motor as punching power, which can ensure low noise, high speed and stable power. The punching speed is adjustable.
    • Double servo ball screw drive module is used in material feeding to ensure fast speed and high productivity.

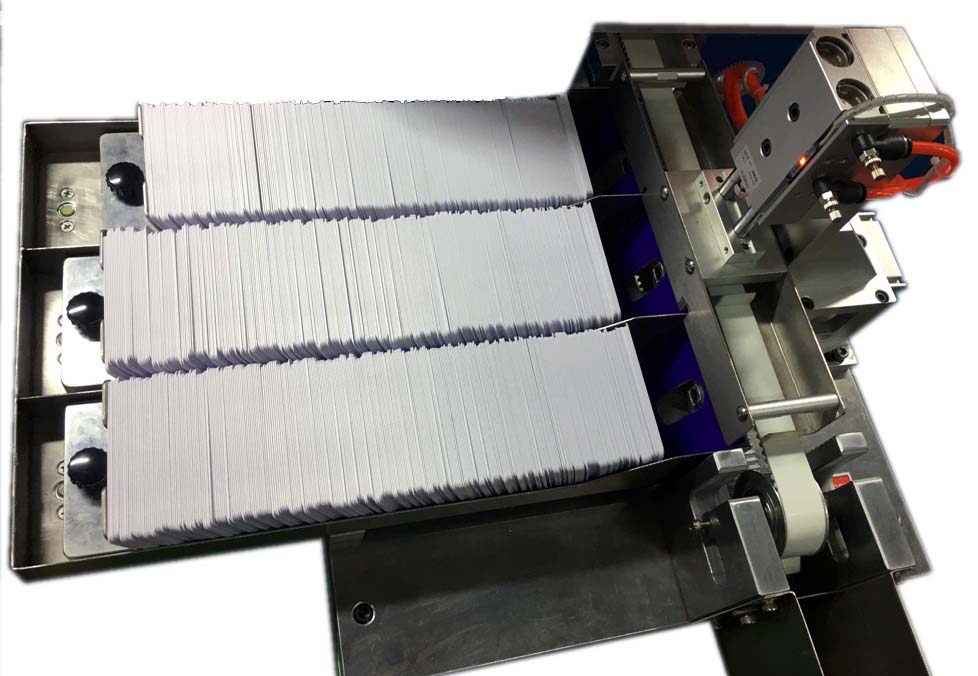

    • Advanced Card collection System can automatically receive the cards in different longitudinal ranks. It works fact and reliable.

    3. Technical Parameter of Full Automatic Plastic Card Puncher YLFP-1 For CR 80 PVC Card Punching


    1. Speed: 18000-20000 cards/h (3×8 layout), 21000-25000 cards/h (4×8 layout), 28000-30000 cards/h (5×5 layout),

    2. Applicable PVC sheet layout: 3×8, 4×8, 5×5

    3. Applicable material: PVC, ABS, PET, PETG and paper

    4. Weight: around 1800 Kg

    5. Power supply: AC380V 50/60HZ

    6. General power: 10.5 KW

    7. Compressed air: 6KG/CM2(dry), 150L/min

    8. Punch precision: ±0.1mm

    9. Control mode: PLC + Servo system

    9. Dimension: L2600×W1240×H1750mm



    4. Application of Full Automatic Plastic Card Puncher YLFP-1 For CR 80 PVC Card Punching


    Free Spare Part List

    SNPart NameModelQty.
    1Relay DC24V 14 PINMY4N-J DC 24V2pcs
    2Fuse10A3pcs
    3Internal Hexagonal screw driver1.5-101set
    4Synchronous belt130XL-101pc
    5Synchronous belt230XL-151pc
    6Air cylinder sensorD-Z731pc
    7Air cylinder sensor)D-A931pc
    8Sucking discφ35mm60pcs
    9Sucking disc holderTW6pcs
    10Zero point sensorTL-W3MC11pcs
    11Mould ScrewM8*25mm20pcs
    12Mould ScrewM12*50mm4pcs

    Full Automatic Plastic Card Puncher is also known or named as Full Automatic Card Punching Machine, Full Automatic Card Die Cutter or Full Automatic Card Die Cutting Machine.
