    Automatic Special Shape Card Puncher YLP-SP-XY For PVC, ABS, Paper Card

    Ask Lasest Price
    Brand Name : YL
    Model Number : YLP-SP-XY
    Price : negotiable
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 1 set per 35 days
    Delivery Time : 30-35days
    • Product Details
    • Company Profile

    Automatic Special Shape Card Puncher YLP-SP-XY For PVC, ABS, Paper Card

    Automatic Special Shape Card Puncher YLP-SP-XY For PVC, ABS, Paper Card


    Automatic Special Shape Card Puncher/Customized Shape Card Puncher/Specially Shaped Card Die Cutter/Abnormal Shape Card Die Cutter YLP-SP-XY

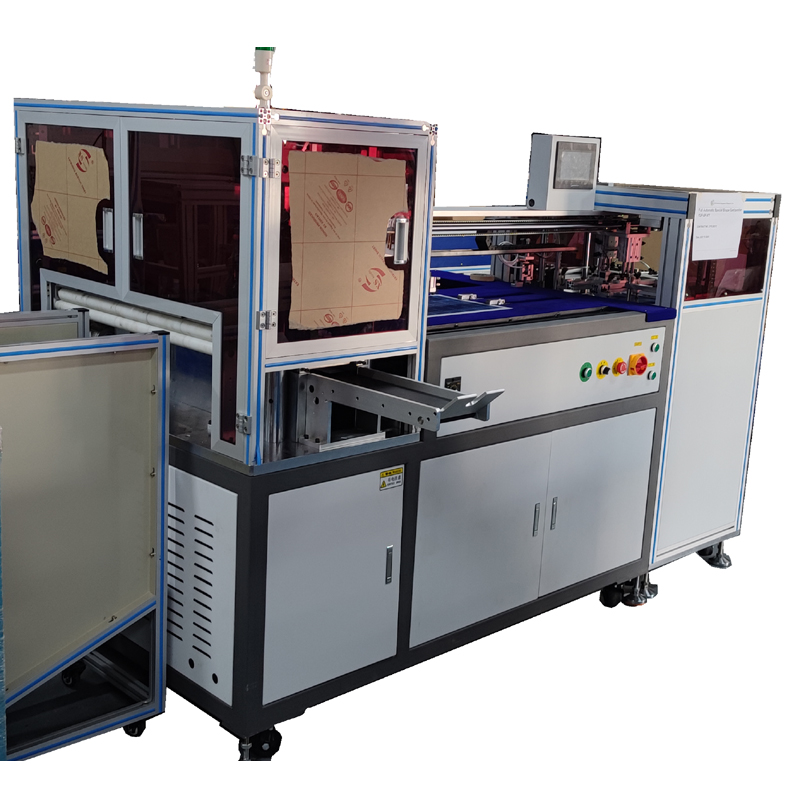

    1. Introduction of Automatic Special Shape Card Puncher YLP-SP-XY For PVC, ABS, Paper Card


    It is suitable for punching all kinds of special-shaped cards. The whole sheet material can be punched after printing. It does not need to be cut into strips in advance. It can be finished at one time, which is convenient and fast.



    2. Features of Automatic Special Shape Card Puncher YLP-SP-XY For PVC, ABS, Paper Card

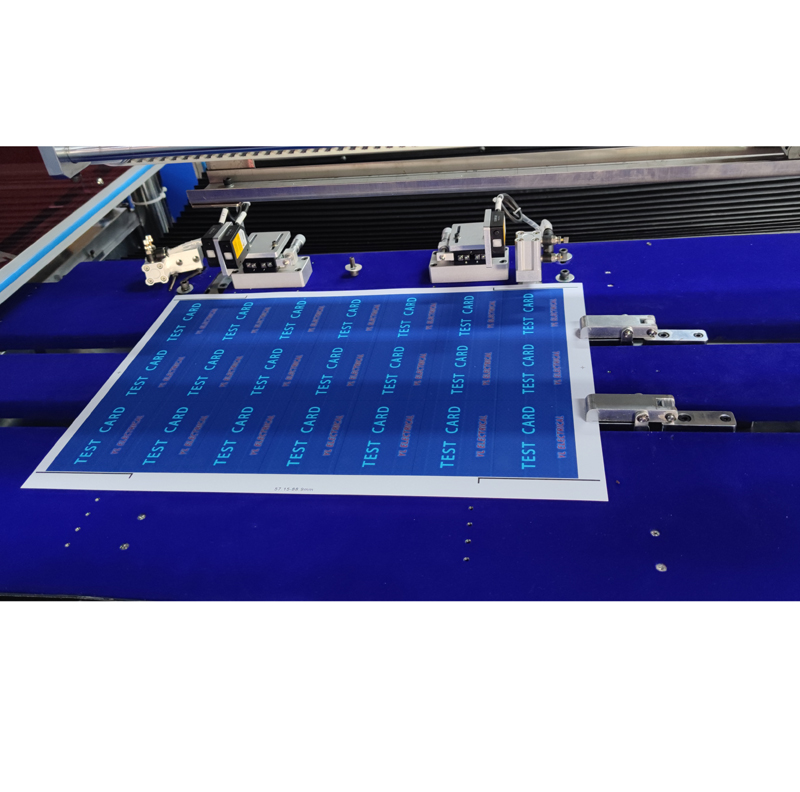

    It can move and feed sheet materials in X and Y direction, so that the feeding times and distance can be freely adjusted according to the printed sheet layout, and the material punching does not need to be cut in advance.


    1).The high-power servo motor applied in the machine has the advantages of low power noise, stable power output and adjustable punching speed. When it is needed to punch cards with different thickness, its performance is much better.


    2).10 sets of layout position parameters can be stored in the system, which is convenient to call out and use, and it is convenient to change different punched products.

    3).The PLC program control can realize automatic operation and can give an timely problem alarm and operation shutdown.


    3.Technical Parameter of Automatic Special Shape Card Puncher YLP-SP-XY For PVC, ABS, Paper Card


    Power supplyAC 380V/50 HZSuitable materialPVC, ABS, paper card etc.
    Power5.5KWMaximum layout350X600mm(Max)
    Air supply6 kg/c㎡(no water)Output4000~6000 pcs /hour(depends on the punch head number)
    Air consumptionAbout 70L/minControl modePLC program+ servo system
    Weight850KgNumber of operators1 person
    Punch precise±0.10mmDimensionsL1700×W1080×H1600mm


    4. Application of Automatic Special Shape Card Puncher YLP-SP-XY For PVC, ABS, Paper Card

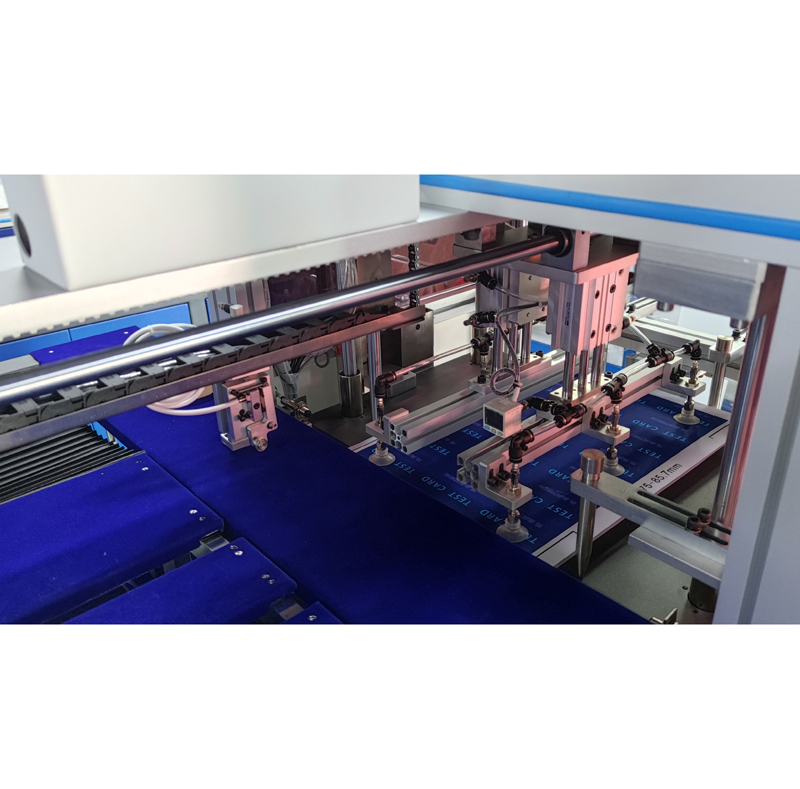

    The machine adopts touch screen with friendly man-machine interface operation, and two groups of servo driven screw module in X and Y direction is used for plastic sheet feeding, it realizes the two-direction positioning feeding in X and Y axis with high punching precision.


    The card making machine -Automatic Special Shape Card Puncher is also known as Customized Shape Card Puncher, Specially Shaped Card Die Cutter, or Abnormal Shape Card Die Cutter YLP-SP-XY.
