PLC Controlled Full Automatic Abnormal Shape Card Die Cutter
YLFP-SP-XY For PVC, ABS, Paper Card
Full Automatic Special Shape Card Puncher/Customized Shape Card
Puncher/Specially Shaped Card Die Cutter/Full Auto Abnormal Shape
Card Die Cutter YLFP-SP-XY
1. Introduction of PLC Controlled Full Automatic Abnormal Shape
Card Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card

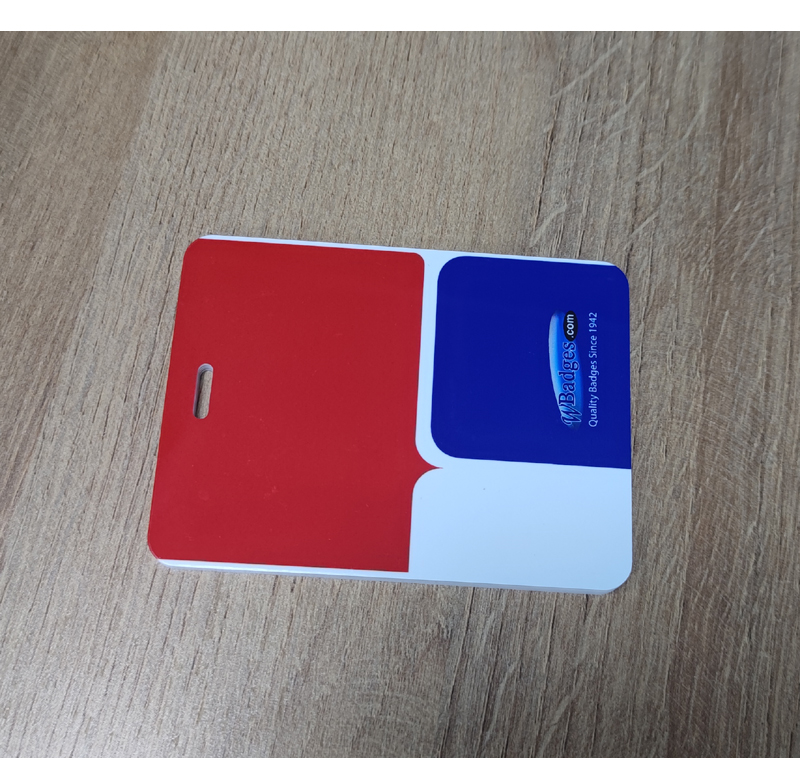

The machine is designed for punching the big laminated sheets into
special shape card (specially shaped card, abnormal shape card or
customized shape card) in a fully automatic way. It has the
pick-placing unit for printed sheet picking and placing purpose. It
adopts touch screen with friendly man-machine interface operation,
and two groups of servo driven screw module in X and Y direction is
used for plastic sheet feeding, and it can realizes the
two-direction positioning feeding in X and Y axis with high
punching precision.
2. Features of PLC Controlled Full Automatic Abnormal Shape Card
Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card
Distance can be freely adjusted according to the printed sheet
layout, and the material punching does not need to be cut in
advance.
1.) The high-power servo motor applied in the machine has the
advantages of low power noise, stable power output and adjustable
punching speed. When it is needed to punch cards with different
thickness, its performance is much better.
2. ) 10 sets of layout position parameters can be stored in the
system, which is convenient to call out and use, and it is
convenient to change different punched products.
3.) The PLC program control can realize automatic operation and can
give an timely problem alarm and operation shutdown.
3.Technical Parameter of PLC Controlled Full Automatic Abnormal
Shape Card Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card
| Power supply | AC 380V/50 HZ | Suitable material | PVC, ABS, paper card etc. |
| Power | 5.5KW | Maximum layout | 350X600mm(Max) |
| Air supply | 6 kg/c㎡(no water) | Output | 4000~6000 pcs /hour(depends on the punch head number) |
| Air consumption | About 70L/min | Control mode | PLC program+ servo system |
| Weight | 850Kg | Number of operators | 1 person |
| Punch precise | ±0.10mm | Dimensions | L1700×W1080×H1600mm |
4. Application of PLC Controlled Full Automatic Abnormal Shape Card
Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card
The card making machine -Full Automatic Special Shape Card Puncher
YLFP-SP-XY. is also known as Customized Shape Card Puncher,
Specially Shaped Card Die Cutter or Abnormal Shape Card Die Cutter
YLFP-SP-XY.
