Semi-Auto Special Shape Card Puncher Abnormal Shape Card Die Cutter
YLP-SP-XY
1. Function and application of Semi-Auto Special Shape Card Puncher Abnormal Shape Card Die
Cutter YLP-SP-XY

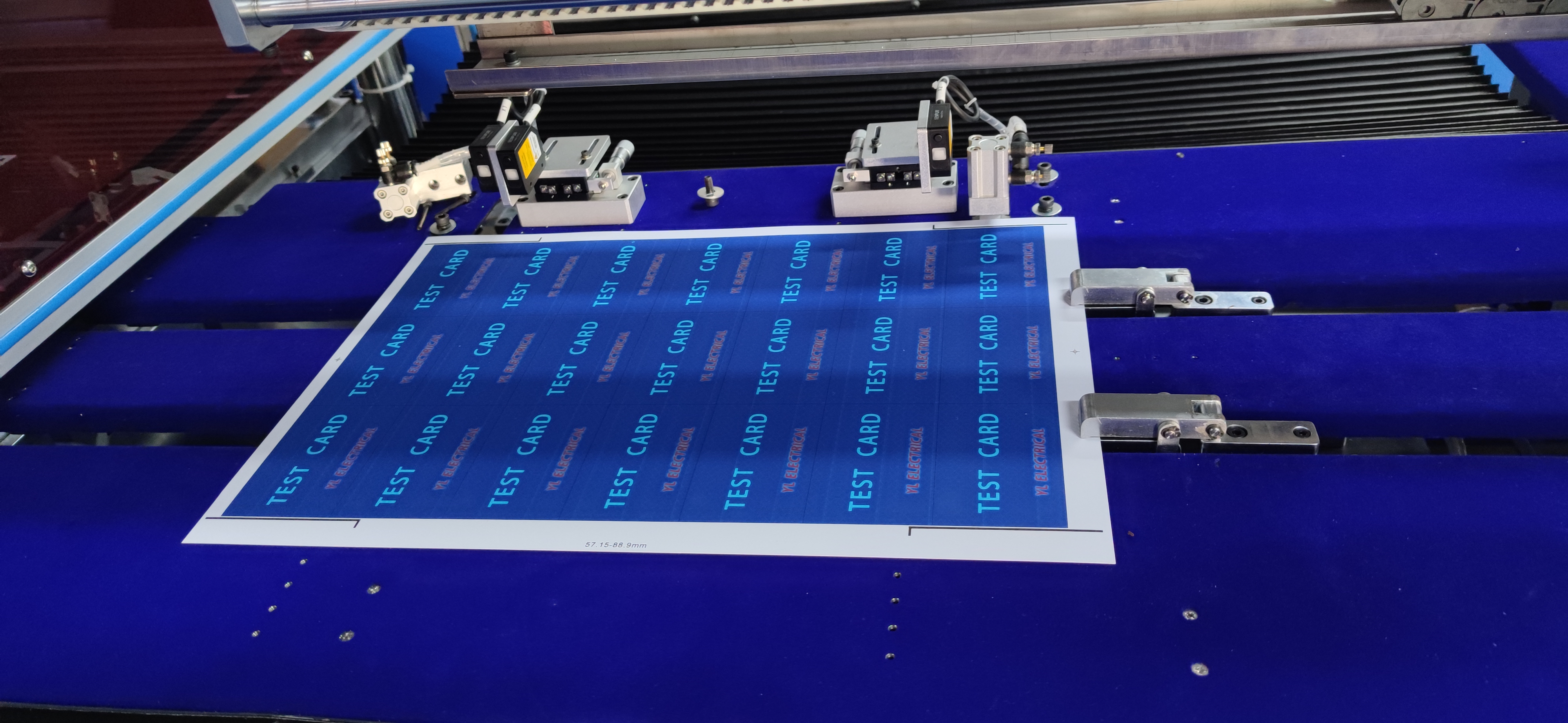

The machine adopts touch screen with friendly man-machine interface
operation, and two groups of servo driven screw module in X and Y
direction is used for plastic sheet feeding, it realizes the
two-direction positioning feeding in X and Y axis with high
punching precision.
It is suitable for punching all kinds of special-shaped cards. The
whole sheet material can be punched after printing. It does not
need to be cut into strips in advance. It can be finished at one
time, which is convenient and fast.
The card making machine -Automatic Special Shape Card Puncher Automatic ia also known Special Shape Card Puncher/Customized
Shape Card Puncher/Specially Shaped Card Die Cutter/Abnormal Shape
Card Die Cutter YLP-SP-XY
2. Features of Semi-Auto Special Shape Card Puncher Abnormal Shape
Card Die Cutter YLP-SP-XY
It can move and feed sheet materials in X and Y direction, so that
the feeding times and distance can be freely adjusted according to
the printed sheet layout, and the material punching does not need
to be cut in advance.
- The high-power servo motor applied in the machine has the
advantages of low power noise, stable power output and adjustable
punching speed. When it is needed to punch cards with different
thickness, its performance is much better.
- 10 sets of layout position parameters can be stored in the system,
which is convenient to call out and use, and it is convenient to
change different punched products.
- The PLC program control can realize automatic operation and can
give an timely problem alarm and operation shutdown.
| Card Material size | PVC, ABS, paper card etc |
| Air supply | 6 kg/c㎡(no water) |
| Power supply | AC380V 50Hz 3-phase 5-line |
| Power | 5.5kw |
| Productivity | 4000~6000 pcs /hour(depends on the punch head number) |
| Dimension | L1700×W1080×H1600mm |
| Weight | Approx.850 kg |
3. Technical Parameter of Semi-Auto Special Shape Card Puncher
Abnormal Shape Card Die Cutter YLP-SP-XY
★ Main Technical Parameters
| Power supply | AC 380V/50 HZ | Suitable material | PVC, ABS, paper card etc. |
| Power | 5.5KW | Maximum layout | 350X600mm(Max) |
| Air supply | 6 kg/c㎡(no water) | Output | 4000~6000 pcs /hour(depends on the punch head number) |
| Air consumption | About 70L/min | Control mode | PLC program+ servo system |
| Weight | 850Kg | Number of operators | 1 person |
| Punch precise | ±0.10mm | Dimensions | L1700×W1080×H1600mm |
4. More details of Semi-Auto Special Shape Card Puncher Abnormal
Shape Card Die Cutter YLP-SP-XY
Our service :
Pre-sale
(1) Professional suggestions (raw material matching, machine
selection, the condition of building factory, feasibility analysis
for brick machine production line)
(2) Device model choice (recommend the best machine according to
the raw material, capacity and the size of brick)
(3) Efficient on-line service
(4) Welcome to visit our factory and production line any time, if
you need, we can make invitation letter for you.
(5) Introduce the company file, product categories and production
process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients
side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at
clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well
communication with each other
Guarantee
(1)We can supply one year guarantee period for our card machines,
if the client have any question ,they could contact our service
department any time ,we will supply efficient service .
(2)Within one year ,if the client meet the unsolvable questions ,we
can make site supporting.
