High Productivity PVC PC PETG Plastic 4x8 IC Card Smart Card Laminator PVC Sheet Fusing YLL-26B

Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-26B 420*520

1. Introduction of High Productivity PVC PC PETG Plastic 4x8 IC Card Smart Card Laminator PVC Sheet Fusing YLL-26B

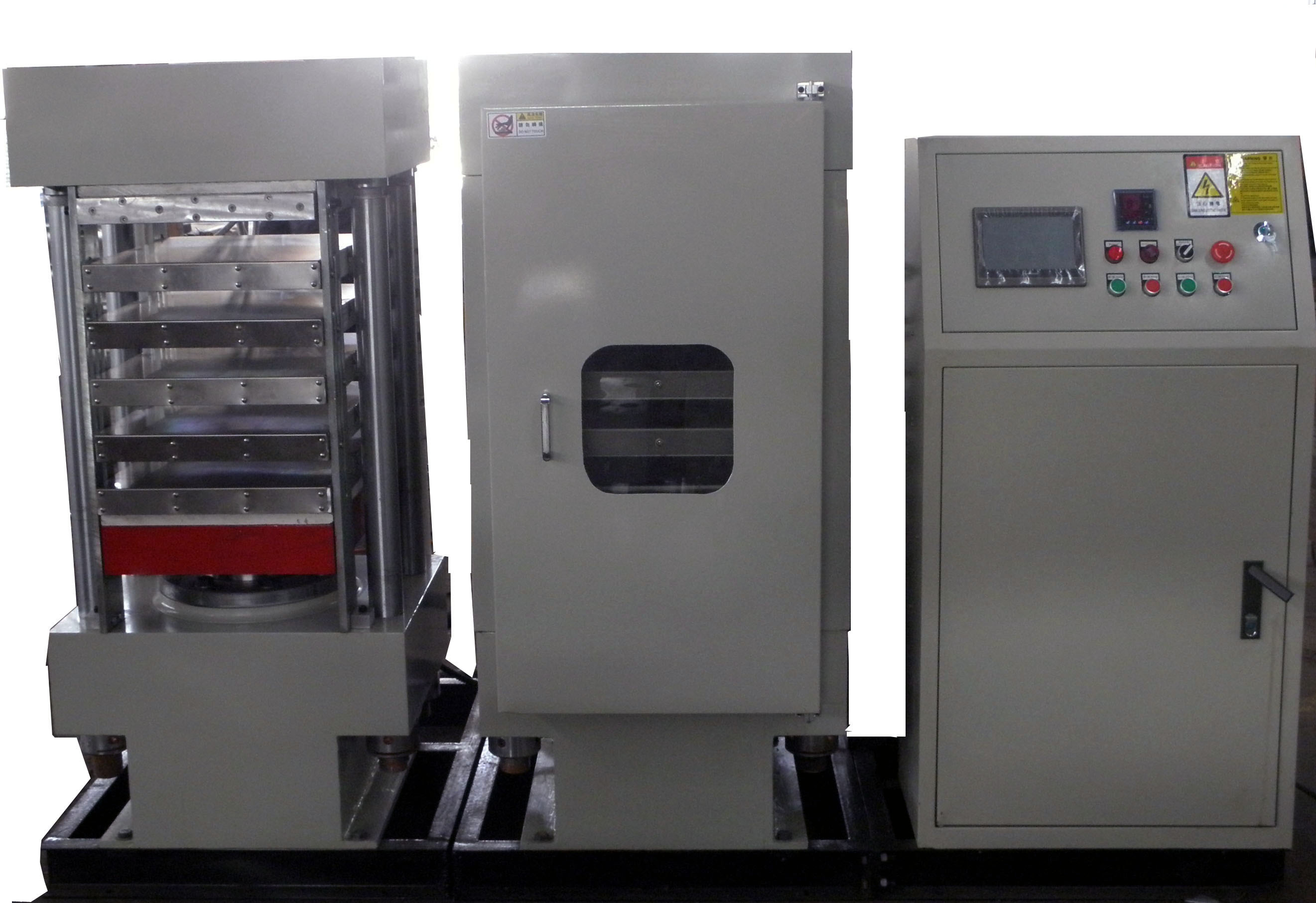

The machine uses the advance laminating technology for normal Magnetic Stripe Card, various Contact & Contactless smart card and prepaid card's production. With heating and cooling towers, PLC control, double liquid compressor pump plus 4 pressure tanks to compress the sheet for the lamination.

2 towers, 6 daylights for each tower, 1 big cylinder for each cylinder, steel lamination template, PLC control, designed for normal card lamination.

Multi-layer sheets with chips or magnetic strips are laminated together under high temperature and pressure, sheets supports for various materials, such as PVC,PETG,ABS and PC ,etc
International HROA difunctional standard cylinders, four cylinders eject together for more balance pressure.
Equipped with automatic high pressure oil return, meanwhile automatic pressure relief, manual pressure relief devices are designed fore more humanized operation.

Photoelectric switches are adopted to realize zero pressure lamination and multilevel pressure control, which reduce chip rejection rate effectively.

The good performance auminum alloy is adopted for fast heating of hot tower&non-rusty cold tower

2. Features of High Productivity PVC PC PETG Plastic 4x8 IC Card Smart Card Laminator PVC Sheet Fusing YLL-26B

• It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;
• pressure supply is realized by two motors and two oil pumps for very high reliability;
• Automatic lamination parallelism adjustment is available.
• The pressure and temperature control module is applied to ensure higher control precision.
• If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
• The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.

Plastic Card Laminator is also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.

3. Technical Parameter of High Productivity PVC PC PETG Plastic 4x8 IC Card Smart Card Laminator PVC Sheet Fusing YLL-26B

1). PVC sheet layout: 5×5, 3×8, 4×8

2). Laminating template size and material: 420×520mm, steel

3). Hydraulic cylinder number: 1 main cylinder (diameter 220mm) for each tower

4). Daylight number/distance: 6 daylights, 2 tower/60mm

5). Control mode: PLC control

6). Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)

7). Temperature control precision: +/-1℃

8). Heating temperature: ≤200℃

9). Power: 23 KW (Maximum)

10). Power supply: AC380V 50/60HZ 3 phase 5 wires

11). Dimension: 2500mm×1200mm×1800mm

12). Gross weight: 3300 kg.

4. More details of High Productivity PVC PC PETG Plastic 4x8 IC Card Smart Card Laminator PVC Sheet Fusing YLL-26B

Normal packing method:Export stanard plywood case or other solid package

Feature Description:

It is controlled by PLC system to ensure more precise control in each lamination stage and more reliable performance.

This model is specially designed for the quality lamination of various cards including RFID chip cards.

The big size cooling parallel loop is specially designed to ensure better cooling effect.

Plastic PVC polycarbonate PC Teslin sheet inlay sheet PVC card RFID samrt ID card laminating machine is used for laminating plastic PVC sheet,teslin sheet, PC sheet, polycarbonate sheet, to produce plastic PVC card, PC card, contactless RFID smart cards.

Plastic Card Laminator is also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.

Based in China, with quality products, competitive price and services, we have been serving the card industry worldwide for over ten years. We have established long-term business cooperation with many customers located in nearly 40 countries worldwide including USA, Canada, Mexico, Chile, Argentina, Russia, India, Malaysia, Thailand, etc.
