    Speed 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+

    Ask Lasest Price
    Brand Name : YL
    Model Number : YIM-4000+
    Price : Negotiable
    Payment Terms : T/T, Western Union, D/P, D/A
    Supply Ability : 1 set per 45 days
    Delivery Time : 50 working days
    • Product Details
    • Company Profile

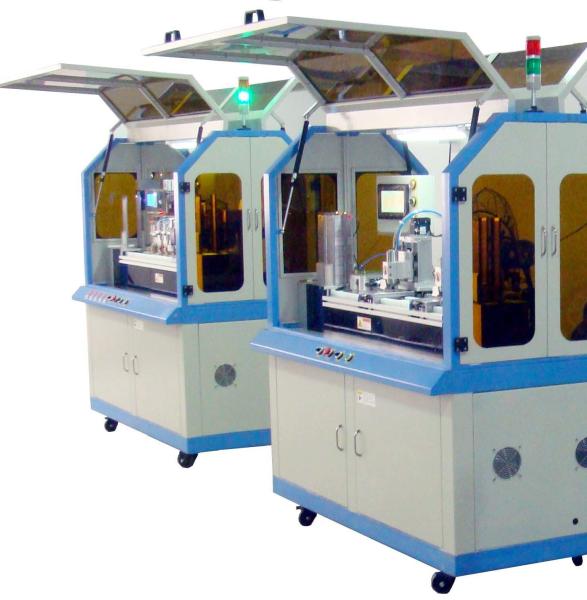

    Speed 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+

    Speed 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+


    Automatic IC Card Milling Machine/ IC card Slot Milling Machine/Contact IC card Slotter YIM-4000+

    ( Contact IC card slot milling machine, Contact IC card slotter, Card machine, smart card production machine)


    1. Introduction of Speed 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+


    Automatic IC Card Milling Machine YIM-4000+ is designed for milling the slot or cavity for IC chip implanting on plastic card surface in a precise and speedy way. It features robust design, reliable performance and fully automatic operation. It is controlled by PLC, which can well ensure easy parameter setting and stable performance.


    2. Machine Functional Configuration of 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+


    Card feeding magazines (two) –slot milling station #1-slot milling station #2-depth detection stations (two)(optional)-dust absorber -Card Collection magazines (two)


    • Double-card conveying system can ensure that two cards are milled at the same time in a speedy way.
    • Three-shaft positioning control system drives servo motor to mill the slots of plastic cards.
    • The parameters of each shaft can be adjusted respectively, and the milling precision can’t be affected by the diameter tolerance of the milling tool.
    • If such problems as card overlapping, wrong card direction or wrong milling depth (checked by the optional depth detection station), the machine will automatically alarm and stop.

    3. Technical Parameters of 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+


    Power supplyAC 380V 50/60 HZControl methodPLC + Servo system
    Total power6.0 KWCard specificationISO CR80/IEC7810 54x85.6mm
    Air source6kg/cm² (dry)Dimension

    Approximately

    L1750xW800xH1850 mm

    Air consumptionApprox. 50L/minMilling precisionX/Y: ±0.015mm Z: ±0.010mm
    weightApprox 650KgOperator1 Person
    Speed3500~4500pcs/h

    4. Application of Speed 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+


    Card feeding magazines (two) –slot milling station #1-slot milling station #2-depth detection stations (two)(optional)-dust absorber -Card Collection magazines (two)


    The equipment adopts network servo linkage control, and multiple spindle motors work synchronously, with fast speed, high accuracy, stable and reliable synchronous forming, greatly improving the production speed and yield rate of the card. The card transfer and milling positioning of the equipment adopt the most time-saving and reliable method, which improves the speed and stability of the entire machine.
