A4 A3 Customized Size Card Lamination Woolen Felt Cushion Pad YRP-1
For Plastic Card Lamination
felt cushion pad, lamination pad, lamination rubber pad, card
laminator cushion pad, plastic card laminating pad, card production
material
1. Introduction of A4 A3 Customized Size Card Lamination Woolen
Felt Cushion Pad YRP-1 For Plastic Card Lamination
Woolen Felt Cushion Pad is designed for the lamination process for
various plastic cards including bank card, credit card, and royalty
card. It works with lamination steel plate in the plastic card
lamination process.

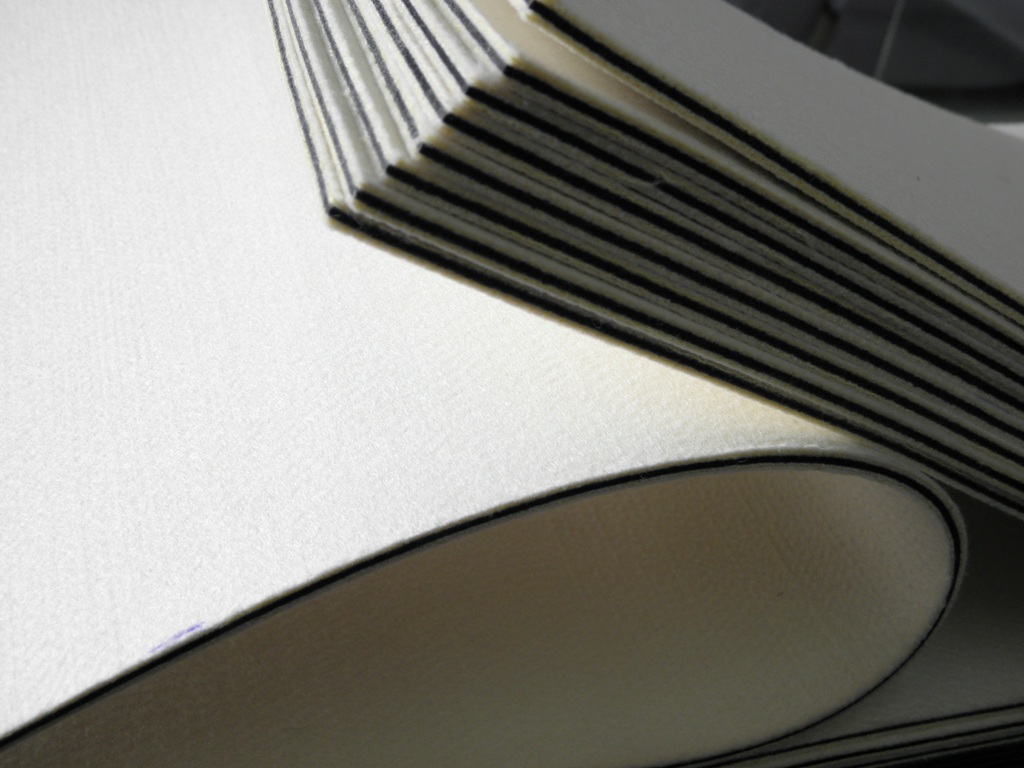

The structure of white silicon cushion pads is heatproof woolen
felt layers on the surfaces with black silicon rubber in the
middle.
2. Features of A4 A3 Customized Size Card Lamination Woolen Felt
Cushion Pad YRP-1 For Plastic Card Lamination
1). It is heatproof with great durability, which can well meet the
technological requirements in plastic card lamination.
2). It can transfer heat quickly and evenly, which can improve
production efficiency and energy conservation.
3). It has good performance of high temperature resistance and
excellent elastic resilience.
| Heatproof performance: | 200℃ |
| Tensile strength | 80 N/mm |
| Adhesion | 60 N/mm |
| Hardness SHORE A | 55±5 |
| Thickness | 3mm |
| Length and width: | A4, A3 or custom-made size (size tolerance: ±1mm) |
3. Technical Parameter of A4 A3 Customized Size Card Lamination
Woolen Felt Cushion Pad YRP-1 For Plastic Card Lamination
1). Heatproof performance: 200℃
2). Tensile strength: 80 N/mm
3). Adhesion: 60 N/mm
4). Hardness SHORE A: 55±5
5). Thickness: 3mm
6). Length and width: A4, A3 or custom-made size (size tolerance:
±1mm)
4. Application of A4 A3 Customized Size Card Lamination Woolen Felt
Cushion Pad YRP-1 For Plastic Card Lamination
Woolen felt cushion pad is also known as felt cushion pad,
lamination pad, rubber pad, card laminator’s cushion pad, felt
rubber pad or plastic card lamination pad.
Facing material:High-temperature endurable felt
Middle material:Black silica gel
Rigidity:50±5
Tensile strength(N/mm):60
Adhesion N/mm:4.5
Heat-resistant t (℃):200
Colour:White
Laminating pads are suitable for manufacturing kinds of ISO baning
cards, cards and smart cards.Raw materials are all for anti-high
temperature and anti-high pressure. Meeting the requirements of
laminating process, as the professional card consumables, they have
been widely using for improving the production efficiency and
saving energy because of the feature of thermal conductive fast and
uniform. Have excellent bibulous performance, can effectively
eliminate the risks of bubbles and watermarks on card surface,
greatly improved the qualification rate of products, and with good
cushioning properties, they can avoid the scratches linked to the
hard touching between the heating plate and the trays, benefited to
the long using life of above both.
