Air Cooled Industrial Water Chiller 3HP YWC-3
1. Data Sheet of Air Cooled Industrial Water Chiller 3HP YWC-3
Model Item | YWC-3HP |
nominal cooling capacity | kcal/h | 6966 |
| kw | 8.1 |
input power | kw | 3.27 |
power supply | 3PH~380V/50HZ |
refrigerant | type | R22 |
| type of control | capillary |
compressor | type | hermetic scroll |
| power(kw) | 2.7 |
condenser | type | finned copper tube + low noise outer rotor fan |
| cooling air flow (m3/h) | 3000 |
evaporator | type | tank with coil |
| chilled fluid flow (m3/h) | 1.39 |
| volume (L) | 50 |

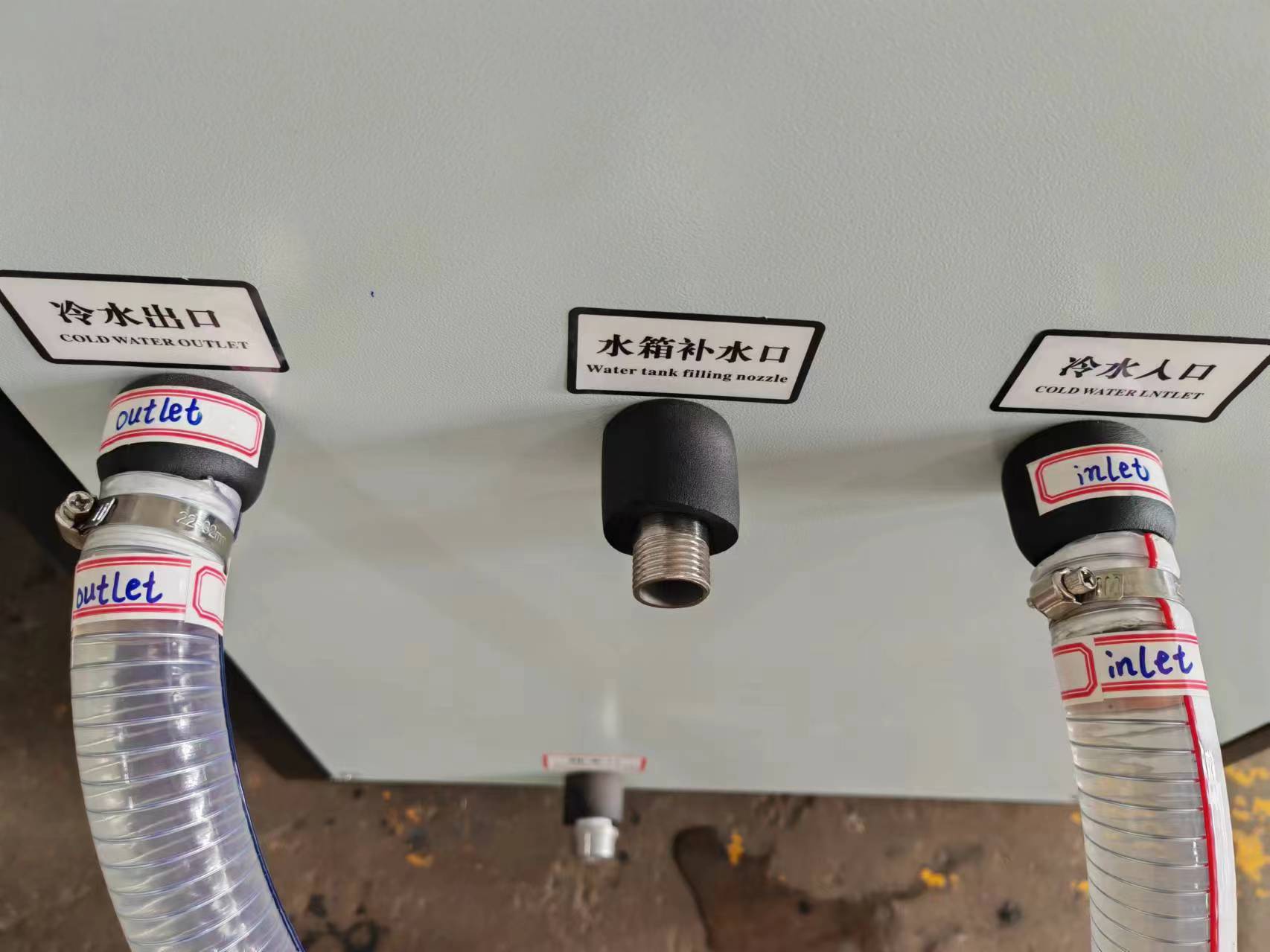

| inlet and outlet pipe diameter (inch) | 1 |
water pump | power (kw) | 0.37 |
| lift (m) | 20 |
safety protection | Compressor thermal protection, over current, high and low pressure, flow switch, phase sequence,
phase-missing, exhaust overheating, anti-freezing. |
weight | kg | 135 |
dimension | mm | 930*520*975 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 12℃
Outlet chilled fluid temperature: 7℃
Inlet cooling air temperature: 30℃
Outlet cooling air temperature: 35℃
2. Working range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is
from 3℃ to 8℃.
It is better to use the chiller while the ambient temperature at or
below 35℃.
We reserve the right to modify the above dimensions or parameters
without further notice.
