6 Daylights Designed For RFID INLAY Sheets Or RFID Chip Card Lamination Semi-Automatic Card Laminator YLL-26C 420×520

Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-26C 420×520

1. Introduction of 6 Daylights Designed For RFID INLAY Sheets Or RFID Chip Card Lamination Semi-Automatic Card Laminator YLL-26C 420×520

2 towers, 6 daylights for each tower, 4 small cylinders for each cylinder, Aluminum alloy lamination template, PLC control, designed for RFID INLAY sheets or RFID chip card lamination

2. Features of 6 Daylights Designed For RFID INLAY Sheets Or RFID Chip Card Lamination Semi-Automatic Card Laminator YLL-26C 420×520

• It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;

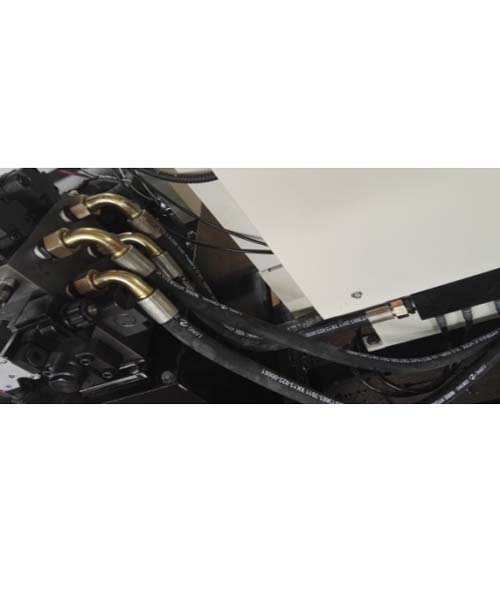

• pressure supply is realized by two motors and two oil pumps for very high reliability;
• Automatic lamination parallelism adjustment is available.
• The pressure and temperature control module is applied to ensure higher control precision.
• If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
• The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.

3. Technical Parameter of 6 Daylights Designed For RFID INLAY Sheets Or RFID Chip Card Lamination Semi-Automatic Card Laminator YLL-26C 420×520

1). PVC sheet layout: 5×5, 3×8, 4×8

2). Laminating template size and material: 420×520mm, steel

3). Hydraulic cylinder number: 1 main cylinder (diameter 220mm) for each tower

4). Daylight number/distance:6 daylight 2 tower/50mm

5). Control mode: PLC

6). Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)

7). Temperature control precision: +/-1℃

8). Heating temperature: ≤200℃

9). Power: 23 KW (Maximum)

10). Power supply: AC380V 50/60HZ 3 phase 5 wires

11). Dimension: 2500mm×1200mm×1850mm

12). Gross weight: 3200 kg.

4. Application of 6 Daylights Designed For RFID INLAY Sheets Or RFID Chip Card Lamination Semi-Automatic Card Laminator YLL-26C 420×520

Plastic Card Laminator is also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.

Based in China, with quality products, competitive price and services, we have been serving the card industry worldwide for over ten years. We have established long-term business cooperation with many customers located in nearly 40 countries worldwide including USA, Canada, Mexico, Chile, Argentina, Russia, India, Malaysia, Thailand, etc.
