Smart Card Pressing Machine Card Laminating Machine YLL-16A4 For 2×5 A4 Sheet

Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-16A4

1. Introduction of Smart Card Pressing Machine Card Laminating Machine YLL-16A4 For 2×5 A4 Sheet

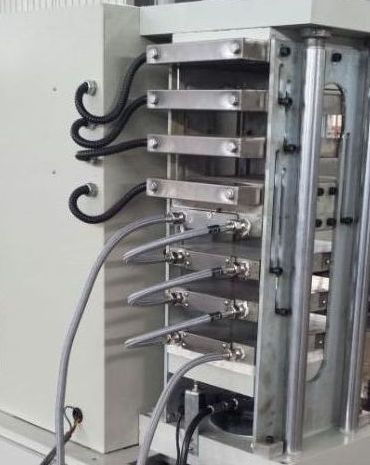

Plastic Card Laminator YLL-16A4 is designed to laminate the A4 bonded PVC sheet assembly into the thicker PVC sheets to be punched. It has one tower with 3 hot openings and 3 cooling openings. Plastic Card Laminator YLL-16A4 is also named as Smart Card Pressing Machine or Card Laminating Machine YLL-16A4.

2. Features of Smart Card Pressing Machine Card Laminating Machine YLL-16A4 For 2×5 A4 Sheet

• Feature Description

• It is controlled by solid relay to ensure reliable performance.
• It has the best performance/price ratio, which is very suitable for middle or small card factory.
• The big size cooling parallel loop is specially designed to ensure better cooling effect.

3. Technical Parameter of Smart Card Pressing Machine Card Laminating Machine YLL-16A4 For 2×5 A4 Sheet

1). PVC sheet layout: 2×5 for 16A4 model

2). Laminating template size: 230×315mm suitable for A4 PVC sheet lamination

3). Daylight number/distance: 1 tower, 3 hot daylights, 3 cool daylights, 40mm

4). Pressure control precision: +/-1Mpa

5). Work pressure: 0-16Mpa (adjustable).

6). Temperature control precision: +/- 2℃

7). Heating temperature: ≤200 ℃

8). Power: 7.5 KW (Maximum)

9). Power supply: AC380V 50/60HZ 3 phase 4 wires

10). Dimension: around L800×W550×H1200mm

11). Gross weight: Around 500 kg.

12). Speed: 1000 cards per hour.

13). Packaging information:1 strong plywood carton, GW 550KG, L1000XW700XH1400mm

4. Package and loading container picture of Smart Card Pressing Machine Card Laminating Machine YLL-16A4 For 2×5 A4 Sheet

Package information:1 strong plywood carton, GW 550KG, L1000XW700XH1400mm
