Contact IC Preperso and Initialization Machine COS Writer YCIM-1for IC SIM Banking Equipment

Contact IC Chip Pre-personalization Machine/Contact IC Preperso and Initialization Machine/Contact IC Chip Pre-personalized Data Writer/ Contact IC Chip COS writer/ Contact IC Chip Data Initialization Machine YCIM-1

1. Introduction of Contact IC Preperso and Initialization Machine COS Writer YCIM-1for IC SIM Banking Equipment

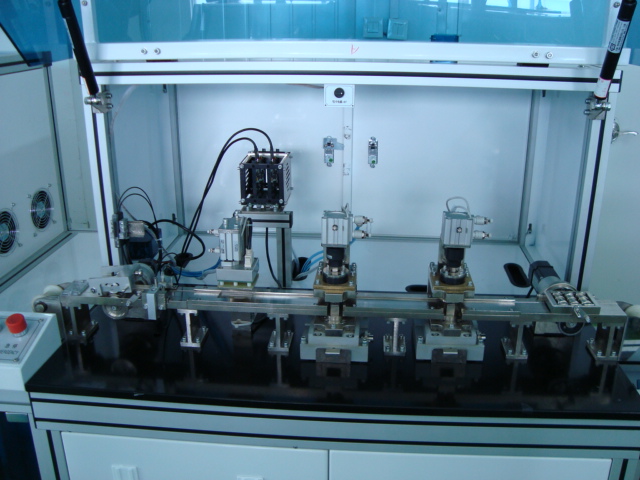

It is designed for writing the general data such as smart card module COS, initialized data and pre-personalized data in the contact IC chips/modules in the form of reel or tape. The equipment is developed with module design.

2. Features of Contact IC Preperso and Initialization Machine COS Writer YCIM-1for IC SIM Banking Equipment

• 122 programming stations (YLD-B card reader) for both M2 and M3 contact IC chips.
• Intelligence control system
• Two standard pulleys for unloading
• 1 group of main writing head × 120 programming stations =120 programming stations
• 1 group of re-writing heads×2 programming stations =2 re-programming stations
• 2 punching stations for invalid modules × 1= 2 punching stations for invalid modules
• Two standard pulleys for loading
• 2 industrial control computers(motion controlling computer and data controlling computer)
• 3 TPLINK switches (48 interfaces)

3. Technical Parameter of Contact IC Preperso and Initialization Machine COS Writer YCIM-1for IC SIM Banking Equipment

• Dimension: 4000mm×800mm×1500mm
• Weight: about 400kg
• Power: 220V, 50Hz, 3KW
• Air pressure: 0.5Mpa 10L/min

4. Application of Contact IC Preperso and Initialization Machine COS Writer YCIM-1for IC SIM Banking Equipment

Performance Index:

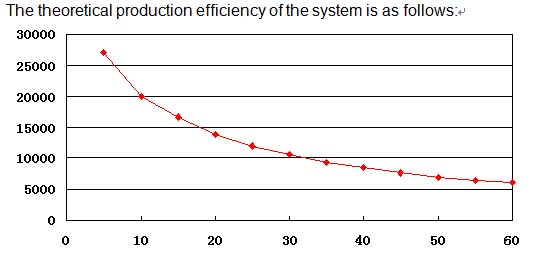

Simultaneous working of 120 programming stations is supported by the module data writing structure. The theoretical production efficiency of the system is as follows:

The data writing time for single module is 30 seconds, and the system speed can be more than 11000 pieces per hour.

The machine is also named as Contact IC Chip Tape Preperso and Initialization Machine, Contact IC Chip Tape Pre-personalized Data Writer, Contact IC Chip COS writer or Contact IC Chip Data Initialization Machine.
