Servo Motor Powered Model Plastic Card Embossing And Bronzing Machine YLE-2

Plastic Card Embosser/Card Embossing and Bronzing Machine/Card Embossing and Tipping Machine/Card Numbering Machine YLE-2

1. Introduction of Servo Motor Powered Model Plastic Card Embossing And Bronzing Machine YLE-2

The model YLE-2 have two embossing stations with one tipping station, which can emboss and tip the standard plastic card simultaneously in a speedy way. It is one of our best sellers among our products. This machine is designed only for embossing the sequential number (3 fixed words or symbol+ maximum 16 numbers).

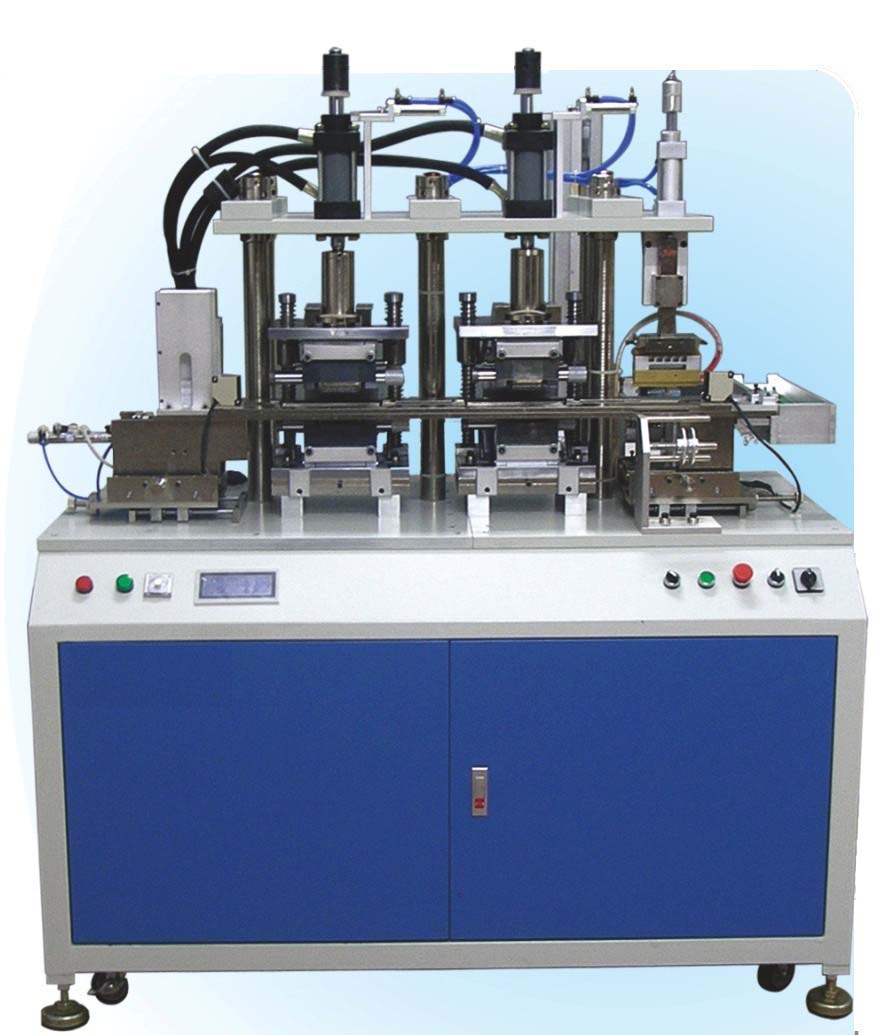

(Note: The above picture is the hydraulic power model which is stopped in production. What we are supplying now is the servo motor powered model which is more reliable with less failure ratio.)

2. Features of Servo Motor Powered Model Plastic Card Embossing And Bronzing Machine YLE-2

• It applies Mitsubishi PLC, touch screen and step-motion system in order to ensure the machine stability; the pneumatic parts applied in this machine are made by SMC to their working durability.
• The embossing moulds are made of Japanese special steel material with the service life of tens of millions times. 2 sets of characters in big and small size are available.
• The embossed word or symbol can be custom-made as per customer demand.

3. Technical Parameter of Servo Motor Powered Model Plastic Card Embossing And Bronzing Machine YLE-2

1. ) Speed: over 6000 cards/hr.
2. ) Applicable material: 0.6-1.0 mm thick plastic CR80 cards.
3. ) Pressure of compressed air: 5 KG/cm²
4. ) Power supply: AC380V 50/60Hz
5. ) Power: 3.5kW
6. ) Weight: 600kg
7. ) Dimension: L1700×W820×H1600 m

4. Application of Servo Motor Powered Model Plastic Card Embossing And Bronzing Machine YLE-2

It applies the reliable Japanese servo motor as embossing power to ensure better embossing effect with less maintenance operation.

The Plastic Card Embosser YLE-2 is also named or known as Card Embossing and Bronzing Machine, Card Embossing and Tipping Machine or Card Numbering Machine YLE-2.

Based in China, with quality products, competitive price and services, we have been serving the card industry worldwide for over ten years. We have established long-term business cooperation with many customers located in nearly 40 countries worldwide including USA, Canada, Mexico, Chile, Argentina, Russia, India, Malaysia, Thailand, etc.
