Hot Sale Dual Station Financial card Hot-Stamping Machine YHS-2
With Anti-fake Hologram Panel etc
Automatic Card Hot Stamping Machine/ Card Hologram Foil Stamping
Machine/Card Signature Panel Stamping Machine YHS-2
1. Introduction of Hot Sale Dual Station Financial card Hot-Stamping Machine YHS-2
With Anti-fake Hologram Panel etc
Dual-station Hot Stamping Machine YHS-2 is mainly used for hot
stamping the anti-fake hologram panel and signature panel on smart
card surface. It has two hot stamping stations with one card flip
unit in the middle. It can well stamp hologram and signature panel
on the same side or two sides in one pass. YHS-2 Hot Stamping
Machine adopts PLC control with touch screen operation. Cards are
well protected without scratching occurring during card conveying.
| Power supply | AC 380V 3 phases |
| Dimensions (LxWxH) | L1580×W1080×H1680 |
| Weight | around 900 kg |
| Control mode | PLC+ stepping system |
| Compressed air | 6 KG/cm2 30L/min |
| Speed | 2000-3000 cards/h |
| Material | CR80 cards 0.70-0.90 mm thick,PVC or other plastic materials |
| Power | 2.6KW |
| Position accuracy | ±0.2mm |
| Stamping temperature range | ≤200ºC |
| Stamping area on card surface | no more than 48mm in card width direction and no more than 80mm in
card length direction. |
2. Features of Hot Sale Dual Station Financial card Hot-Stamping Machine YHS-2
With Anti-fake Hologram Panel etc
- ) It applies high-quality servo motor as operation power to ensure
good stability and quality stamping. Running speed and pressing
stroke are adjustable.
- ) Stepping distance for gilding film can be adjusted.
- ) PLC control is adopted for reliable automatic running, and the
machine will halt and alarm automatically in case of no card or
failure occurring.
- ) High-quality imported temperature controller is used to control
the hot stamping temperature for better stamping quality.
3. Technical Parameter of Hot Sale Dual Station Financial card Hot-Stamping Machine YHS-2
With Anti-fake Hologram Panel etc
Automatc hot foi PVC stamping machine for all kinds of PVC cards:
VIP cards,business cards,lottery ticket.Available for copperplate
or zinc plate, easy to replace the plate, overay accuracy with high
speed stamping.
| Applicable materials: | PVC or other plastic materials |
| Applicable thickness of Material: | 0.7-0.9mm |
| Size of material: | 54×85.6 |
| Heating temperature: | ≤200ºC |
| Temperature Accuracy: | ±1.0ºC |
| Position accuracy: | ±0.2mm |
| Power supply: | AC 380V 3 phases |
| Power: | 2.6KW |
| Productivity: | 2000-3000 cards/h |
| Dimension: | L1580×W1080×H1680 |
| Weight: | 900 kg |
4. More details of Hot Sale Dual Station Financial card Hot-Stamping Machine YHS-2
With Anti-fake Hologram Panel etc
YHS-2 Hot Stamping Machine adopts PLC control with touch screen
operation. Cards are well protected without scratching occurring
during card conveying.

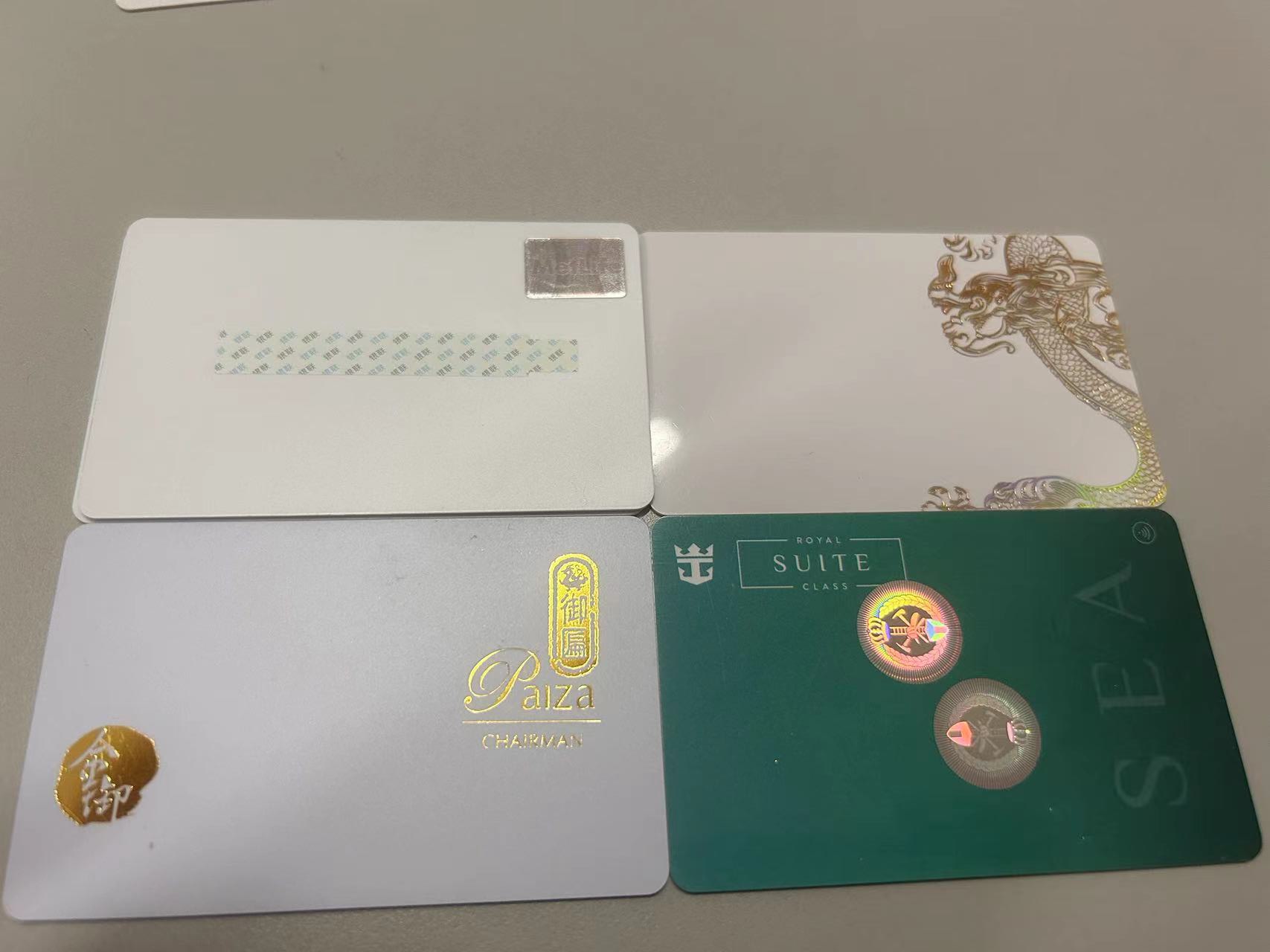

The machine doen't inculde the hot-stamping dies,the seller can
make the die according to customers's drawing,then hot stamped the
different size and logo according to customers' request.
