High Chip Re-Application Ratio Contact IC Card Chip Recycling Machine YCRM-1 Including GSM SIM Cards

1. Introduction of High Chip Re-Application Ratio Contact IC Card Chip Recycling Machine YCRM-1 Including GSM SIM Cards

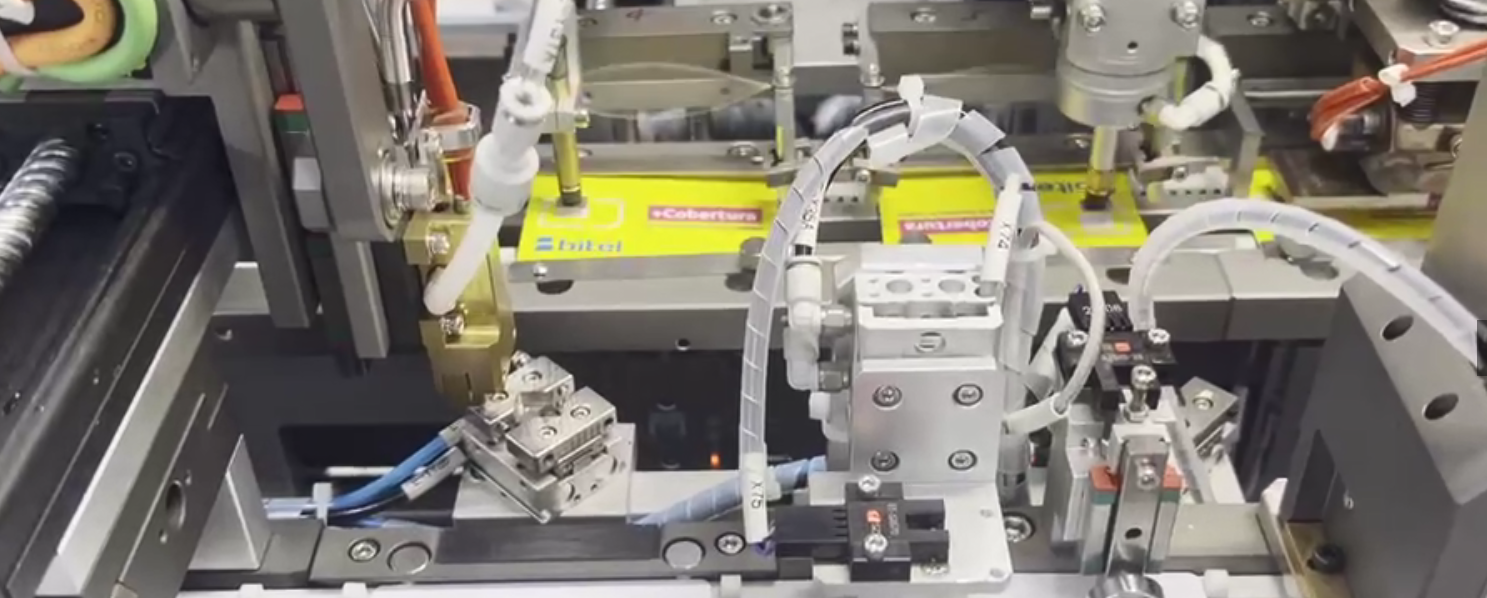

Contact IC card Chip Recycling Machine YCRM-1 is the update-to-date smart card machine which can pick contact IC chips from the old contact IC cards (including GSM SIM cards) and place the same to the milled slot of the new card body in a reliable and speedy way.

2. Features of High Chip Re-Application Ratio Contact IC Card Chip Recycling Machine YCRM-1 Including GSM SIM Cards

Machine functional configuration:

Dual card feeding magazines+chip hot stamping station+dual chip extraction units+waste card collection+dual chip collection & transfer units+chips implanting unit +milled slot glue application unit+4 hot pressing stations+cooling stations+ATR checking+CCD inspection camera+card collection

3. Technical Parameter of High Chip Re-Application Ratio Contact IC Card Chip Recycling Machine YCRM-1 Including GSM SIM Cards

1). Speed: around 2000 CPH.

2). Processed materials : Contact IC cards and new cards with slots in the size of 54*85.6mm.

3). Power supply: AC220V 50MHZ

4). Control mode: PC

5). General power: 7.5KW

6). Compressed air: 0.5-0.6MPA

7). Air consumption: 400L/min

8). Machine size: 3200*900*1800mm

9). Lead time: 40-50 days.

4. Application of High Chip Re-Application Ratio Contact IC Card Chip Recycling Machine YCRM-1 Including GSM SIM Cards

This kind of machine can greatly increase the chip re-application ratio by recycling and reusing the chips implanted in the wrong or old card bodies, which can greatly save the chip purchasing cost in the card production factories or card manufacturers.

Based in China, with quality products, competitive price and services, we have been serving the card industry worldwide for over ten years. We have established long-term business cooperation with many customers located in nearly 40 countries worldwide including USA, Canada, Mexico, Chile, Argentina, Russia, India, Malaysia, Thailand, etc.
