5.54 Kw Air Cooled Industrial Chiller Machine 5HP Automatic YWC-5

    Buy cheap 5.54 Kw Air Cooled Industrial Chiller Machine 5HP Automatic YWC-5 from wholesalers

    Buy cheap 5.54 Kw Air Cooled Industrial Chiller Machine 5HP Automatic YWC-5 from wholesalers
    • Buy cheap 5.54 Kw Air Cooled Industrial Chiller Machine 5HP Automatic YWC-5 from wholesalers

    5.54 Kw Air Cooled Industrial Chiller Machine 5HP Automatic YWC-5

    Ask Lasest Price
    Brand Name : YL
    Model Number : 5HP YWC-5
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1 set a month
    Delivery Time : 45-60days
    • Product Details
    • Company Profile

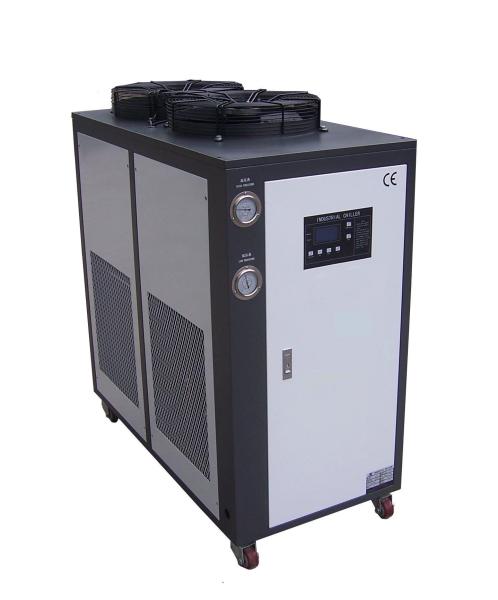

    5.54 Kw Air Cooled Industrial Chiller Machine 5HP Automatic YWC-5


    Air cooled industrial chiller 5HP YWC-5






    1. Technical Parameters of Air cooled industrial chiller 5HP YWC-5


    Model

    Item

    YWC-5HP
    nominal cooling capacitykcal/h11223
    kw13.05
    input powerkw5.54
    power supply3PH~380V/50HZ
    refrigeranttypeR22
    type of controlcapillary
    compressortypehermetic scroll
    power(kw)4.41
    condensertypefinned copper tube + low noise outer rotor fan
    cooling air flow (m3/h)5000
    evaporatortypetank with coil
    chilled fluid flow (m3/h)2.24
    volume (L)70
    inlet and outlet pipe diameter (inch)1
    pumppower (kw)0.75
    lift(m)20
    safety protectioncompressor thermal protection, over current, high and low pressure, phase sequence, phase-missing, exhaust overheating.
    weightkg175
    Dimension.mm1140*560*1040

    Note: 1. Nominal cooling capacity is according to:

    Inlet chilled fluid temperature: 12℃

    Outlet chilled fluid temperature: 7℃

    Inlet cooling air temperature: 30℃

    Outlet cooling air temperature: 35℃


    2. Working range:

    The temperature range of chilled fluid is from 5℃ to 35℃;

    Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

    It is better to use the chiller while the ambient temperature at or below 35℃.

    We reserve the right to modify the above dimensions or parameters without further notice





    Our service :
    Pre-sale
    (1) Professional suggestions (raw material matching, machine selection, the condition of building factory, feasibility analysis for brick machine production line)
    (2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
    (3) Efficient on-line service
    (4) Welcome to visit our factory and production line any time, if you need, we can make invitation letter for you.
    (5) Introduce the company file, product categories and production process.
    Sale:
    (1) Update the production scheduling in time
    (2) Quality supervision
    (3) Product acceptance
    (4) Shipping on time
    After-sale:
    (1) The engineer will guide to carry out the plant at the clients side if needed.
    (2) Set up, fix, and operate
    (3) offer training to the operator until they are satisfied at clients side.
    (4) Skill support the whole using life.
    (5) Recall clients regularly ,get feedback in time ,keep well communication with each other


    Guarantee
    (1)We can supply one year guarantee period for our card machines, if the client have any question ,they could contact our service department any time ,we will supply efficient service .
    (2)Within one year ,if the client meet the unsolvable questions ,we can make site supporting.
