Specially Shaped Card Die Cutter 3-tag 2-tag Abnormal Shape Card Puncher YL-3TP
1. Introduction of Specially Shaped Card Die Cutter 3-tag 2-tag
Abnormal Shape Card Puncher YL-3TP
Special Shape Card Puncher YL-3TP is specially designed for
punching standard CR80 plastic cards into 3-tag (1/3+1/3+1/3 tag

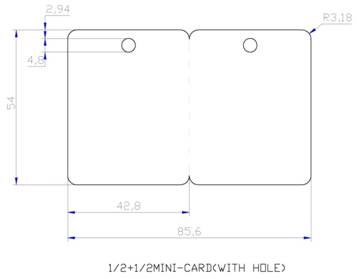

card), 2-tag card(1/2+1/2 tag card or 1/3+2/3 tag card) or other
special shape tag cards by changing different punching and stamping
mould in a speedy and precise way. It is controlled by PLC and
operated with touch screen. The powerful servo motor systems are
applied as punch power to ensure perfects punching and stamping
effect. The punching mould applies high-quality punch mould steel
with high precise punching precision.
2. Key functional feature of Specially Shaped Card Die Cutter 3-tag
2-tag Abnormal Shape Card Puncher YL-3TP
The Special Shape Card Puncher is also known as Customized Shape
Card Puncher, Specially Shaped Card Die Cutter, or Abnormal Shape
Card Die Cutter.
| Card Material size | CR80 standard size, 54×85.6, thickness 0.25-0.9mm |
| Air Source | 6 kg/c㎡(Dry) |
| Power supply | AC380V 50Hz 3-phase 5-line |
| Total Power | 4kw |
| Productivity | 3500-5000 cards/hr |
| Dimension | L1310×W650×H1650mm |
| Weight | Approx.450 kg |
3. Technical Parameter of Specially Shaped Card Die Cutter 3-tag
2-tag Abnormal Shape Card Puncher YL-3TP
Technical parameters
- Card Material size: CR80 standard size, 54×85.6, thickness
0.25-0.9mm
- Air supply: 6 atm, 40L/min
- Power supply: AC380V 50Hz 3-phase 5-line
- Power: 4kW
- Productivity: 3500-5000 cards/hr.
- Dimension: L1310×W650×H1650mm
- Weight: Approx.450 kg
| Power supply | AC 380V/50 HZ | Card Material size | CR80 standard size, 54×85.6, thickness 0.25-0.9mm |
| Power | 4.0KW | Control mode | PLC program control + servo system |
| Air Source | 6 kg/c㎡(dry) | Operator number | 1 person |
| Air consumption | About 40L/min | Dimension | L1310×W650×H1650mm |
| Weight | About 450Kg | Punched card | Comply with ISO CR-80-ISO7810 international standard |
| Punching precision | ±0.10mm | Speed | 3500-5000 cards/hr
|
| Applicable materials | PVC, ABS, pet, PETG, paper card, PVC and ABS mixed materials, etc. |
4. More details of Specially Shaped Card Die Cutter 3-tag 2-tag
Abnormal Shape Card Puncher YL-3TP
Packing information: using the PE film as the protection fims
insides, standard export plywood case outside;
Our service :
Pre-sale
(1) Professional suggestions (raw material matching, machine
selection, the condition of building factory, feasibility analysis
for brick machine production line)
(2) Device model choice (recommend the best machine according to
the raw material, capacity and the size of brick)
(3) Efficient on-line service
(4) Welcome to visit our factory and production line any time, if
you need, we can make invitation letter for you.
(5) Introduce the company file, product categories and production
process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients
side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at
clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well
communication with each other
Guarantee
(1)We can supply one year guarantee period for our card machines,
if the client have any question ,they could contact our service
department any time ,we will supply efficient service .
(2)Within one year ,if the client meet the unsolvable questions ,we
can make site supporting.
