Full Automatic 1-chip 2-chip SIM Card Punching Machine 2FF 3FF 4FF GSM Card Cutter YLFP-SIM-2

1. Introduction of Full Automatic 1-chip 2-chip SIM Card Punching Machine 2FF 3FF 4FF GSM Card Cutter YLFP-SIM-2

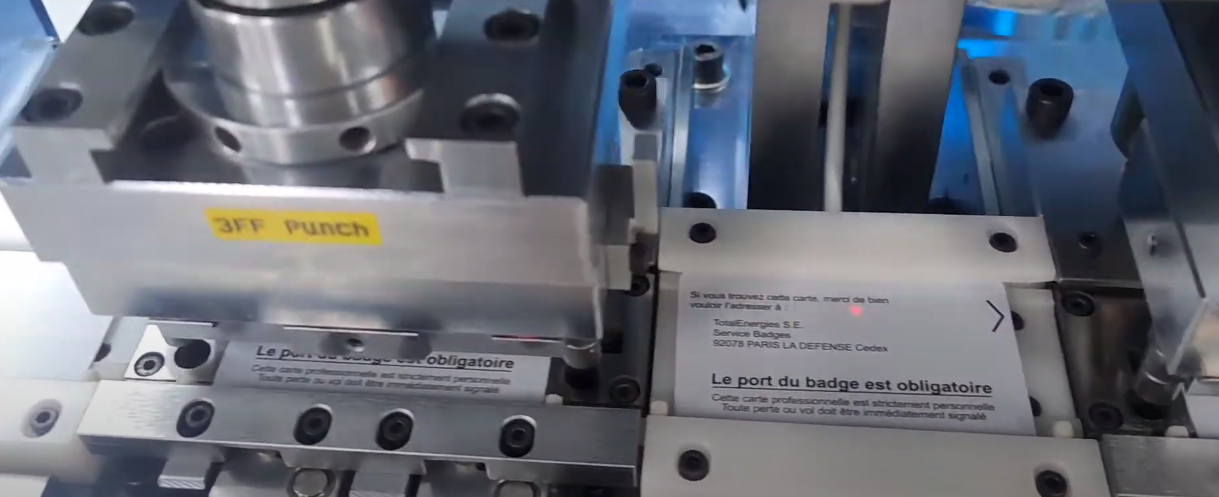

Full automatic SIM card puncher YLFP-SIM-2 is specially designed for punching both 1-chip SIM card and 2-chip SIM card with total five working stations in a precise and speedy way. Counting from right to left side, they are 4FF card seamless punching station (two sets of molds for 1-chip or 2-chip card), 3FF card seamless punching station (two sets of molds for 1-chip or 2-chip card), 2FF card slot punching station (two sets of molds for 1-chip or 2-chip card), 2FF card indentation station (two sets of molds for 1-chip or 2-chip card) and half card punching station special for 2-chip SIM card (including one set of half card cutting mold). It is automatically controlled by PLC program and operated by Chinese-English touch screen. It features adjustable parameters, fast speed and high precision.

It is automatically controlled by PLC program and can be operated by large touch screen. Card feeding, hole punching and indentation are driven by servo system. The parameters are adjustable according to customer’s demand , with high speed and high precision.

2. Features of Full Automatic 1-chip 2-chip SIM Card Punching Machine 2FF 3FF 4FF GSM Card Cutter YLFP-SIM-2

1. The punching die adopts advanced structural design, and the cutting edge is made of imported high hardness and wear-resistant steel, which can well ensure a longer service life of the punching die with perfect card punching performance.

2. The indentation (kiss punch) mold is made of imported high hardness and wear-resistant blades, which ensures better indentation effect of small cards with more convenient mold maintenance.

3. It adopts high-power servo motor as punching and cutting power with adjustable parameters, large shearing torque and high precision.

4. It applies modular structure design, and four workstations can work simultaneously or independently with high efficiency and flexible application.

5. It is possible to select double card feeders to work at the same time or single card feeder to work, which is convenient to meet different processing requirements.

6. The special belt type card conveying mechanism is adopted, which is featuring stable performance, higher speed without scratching cards.

7. Card feeding direction detection or double card feeding detection functions are available.

8. if there is no card in the card feeding magazine or the card collection magazine is found full, the machine will automatically alarm and stop.

9. PLC program control automatic operation, color Chinese and English touch screen operation, and automatic sampling inspection function can be set, which is stable and reliable.

3. Technical Parameters of Full Automatic 1-chip 2-chip SIM Card Punching Machine 2FF 3FF 4FF GSM Card Cutter YLFP-SIM-2

4. More features of Full Automatic 1-chip 2-chip SIM Card Punching Machine 2FF 3FF 4FF GSM Card Cutter YLFP-SIM-2

1. High die punching accuracy, stable operation of equipment

2. 6 sets of punching stations are installed on this machine. Machine is available to produce 2FF/3FF/4FF in one pass without changing tools.

3. The punching mold is controlled by servo system with very low level of noise and high stability.

4. Machine equiped with double cards detection, to ensure yield of card output to meet expectation.

5. Unique card centering system, to make the machine is available to produce card with special shape.

6. Photoelectron sensor is applied to ensure accuracy of hard structure of card centering.

7. Movement of card transfer belt (conveyer) is controlled by servo motor, to ensure high level of safety and stability of mechanical hard structure.

8. Strong and improved servo motor is applied for punching station, which ensure the perfect punching.

9. Unique design of punching bed makes accurate movement of punching tools

10. Unique output structure can be available for ID-1,half card and quarter card

11. User-friendly human machine interface (HMI) system for easy communication.

12. Each workstation can free choice of opening and closing, free combination punching, switch convenience.

Work flow chart
