Automatic High-Speed Ultrasonic Card Packing Machine YUP-3000 For
Single-Card Or Multi-Card Packing
Automatic High-speed Ultrasonic Card Packing Machine/Card Packaging
Machine/Card Wrapping Machine/Card Wrapper/Card Packer YUP-3000
1. Introduction of Automatic High-Speed Ultrasonic Card Packing Machine YUP-3000 For
Single-Card Or Multi-Card Packing

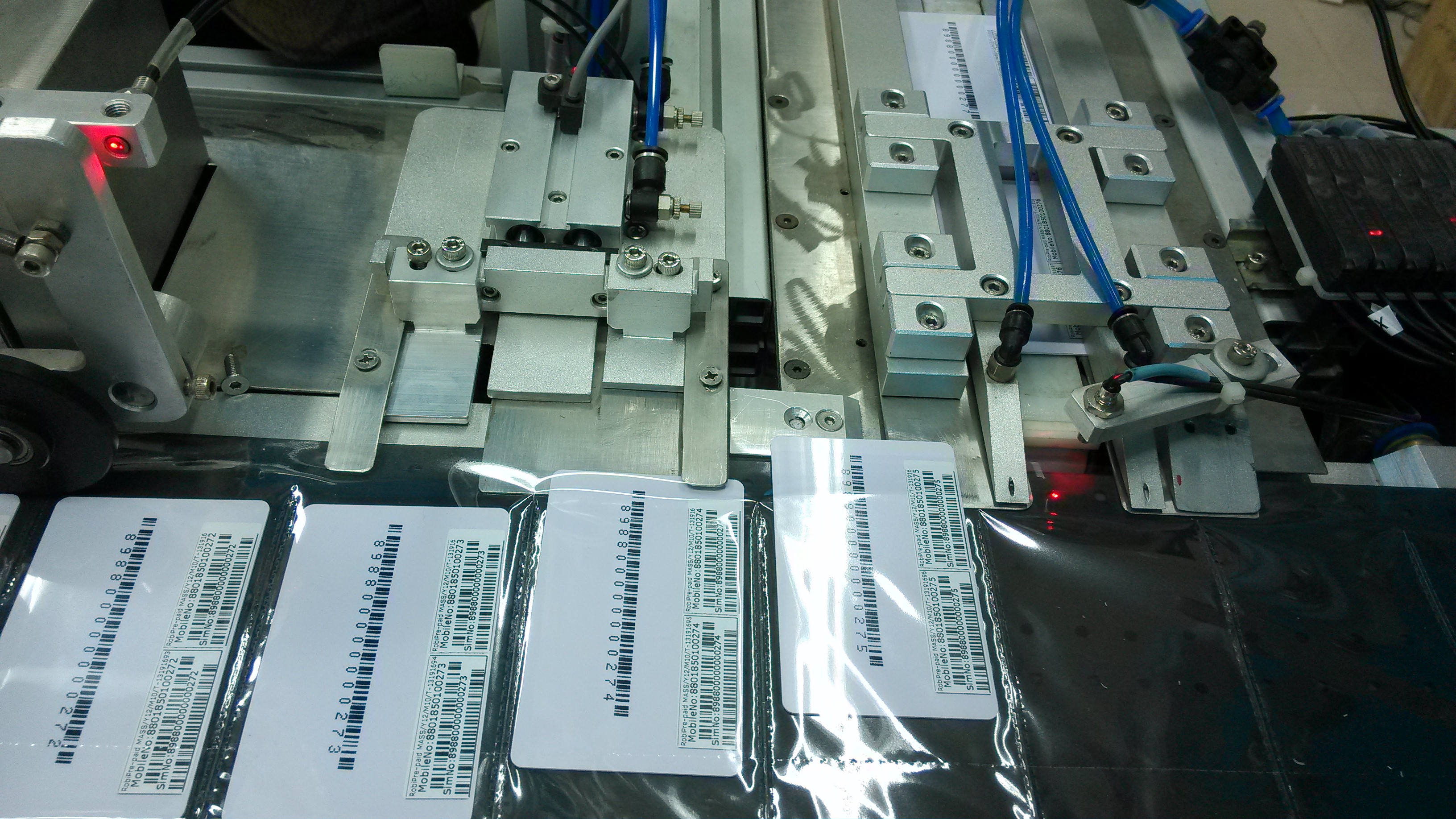

Automatic High-speed Ultrasonic Card Packing Machine YUP-3000 can
realize perfect single-card or multi-card packing by applying
continuous ultrasonic welding technology in a very high speed. PLC
controlled with friendly man-machine interface, it features faster
speed, low noise, perfect welded pattern and reliable performance.
It is applicable to pack cell phone charge card, standard and
smaller SIM card in bulk.
2. Features of Automatic High-Speed Ultrasonic Card Packing Machine YUP-3000 For
Single-Card Or Multi-Card Packing
1). Packing film is conveyed by special rubber wheel and air
absorbing belt to ensure flat and stable film.
2). It has the function of automatic checking for card overlapping
and card absence. If the above occurs, it will stop automatically
with error notice.
3). The second feeder can be installed to pack double cards or
insert the mini booklet in one bag.
4). It applies the welding technology of continuous ultrasonic
welding, which can ensure clear and beautiful sealing patterns or
lines.

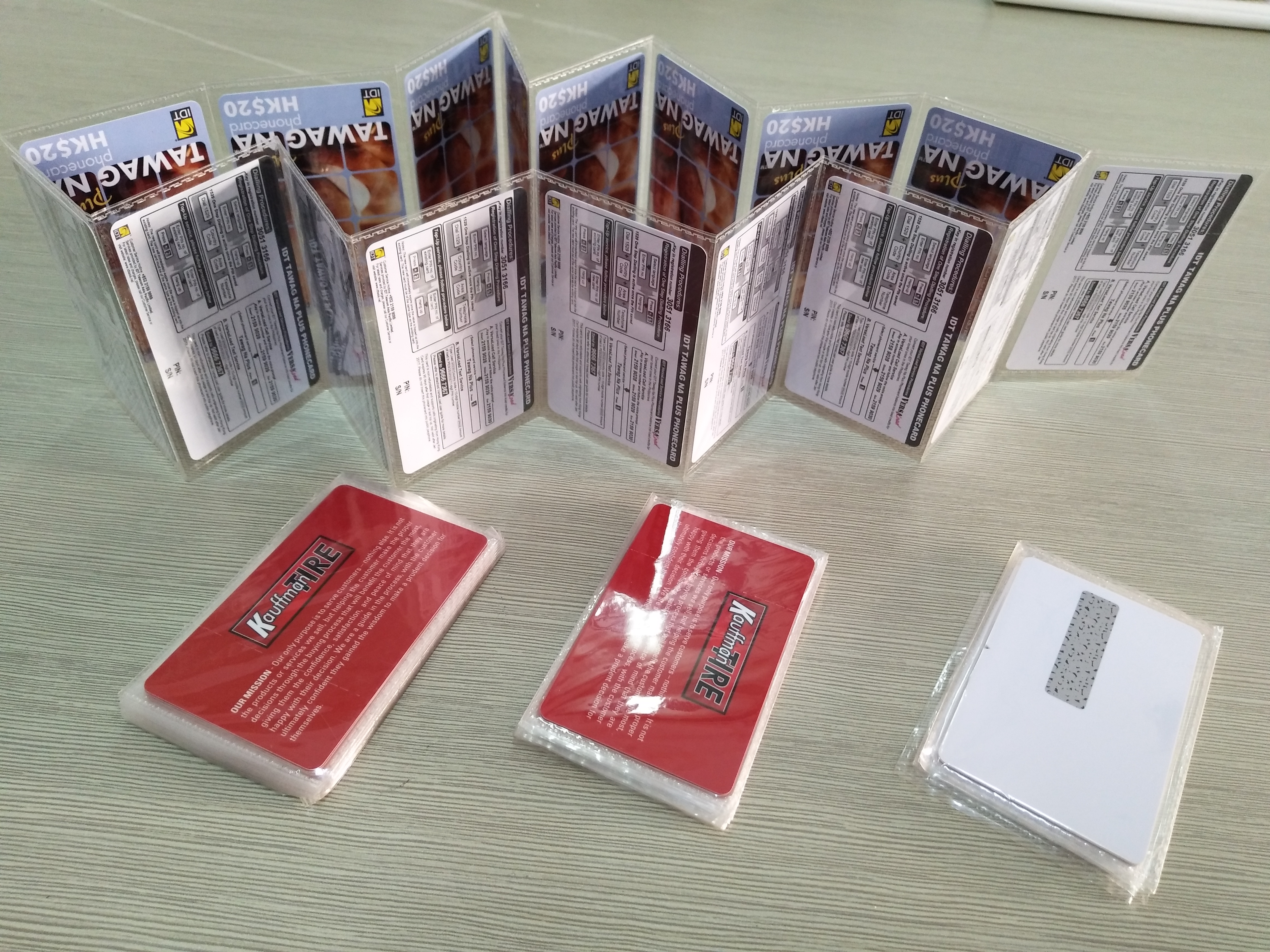

5). Single-card packing or Multiple-card packing is available, and
the number of cards to be collected can be set.
6). Visual inspection system is optional, which can check the
serial number or bar codes of the cards.
7). Chain card binding unit is optional, which can bind the packed
chain cards.
3. Technical Parameter of Automatic High-Speed Ultrasonic Card
Packing Machine YUP-3000 For Single-Card Or Multi-Card Packing
| Power Supply | AC 380V/50 HZ | Control Method | PLC programming+ Step System |
| Total Power | 5KW | Operator | 1 person |
| Air Source | 6 kg/c㎡(Dry) | Dimension | L4800×W980×H1860mm |
| Air Consumption | 50L/min | Packaging Material | BOPP film or similar 0.025mm~0.035 mm thick |
| Weight | Approximate 1000Kg | Card size | 0.25-0.8mm thick CR80 cards |
| Speed | Max 30000 pcs/hr | Packaging Size | Folded film 120 mm wide (for standard card ) or 60mm wide (for half
size card), Film roll inner diameter 3 inches and external diameter
less than 450 mm, |
4. Application of Automatic High-Speed Ultrasonic Card Packing
Machine YUP-3000 For Single-Card Or Multi-Card Packing
Automatic High-Speed Ultrasonic Card Packing Machine YUP-3000 is
also known as Speedy Card Packaging Machine, High-speed Card
Wrapping Machine, Card Wrapper or Card Packer YUP-3000.
