    Single Card Multi Card Packing Card Wrapping Machine Automatic YUP-600

    Ask Lasest Price
    Brand Name : YL
    Model Number : YUP-600
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, Western Union
    Supply Ability : 5 sets per month
    Delivery Time : 25-35 days
    • Product Details
    • Company Profile

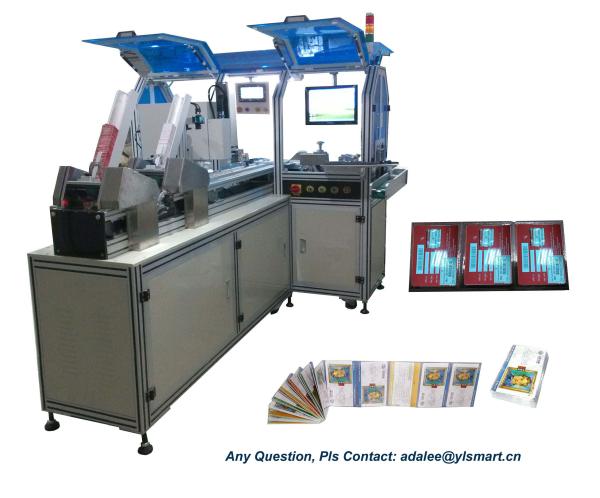

    Single Card Multi Card Packing Card Wrapping Machine Automatic YUP-600


    Automatic Single-card Multi-card Packing Card Wrapping Machine YUP-600


    1. General Introduction of Automatic Single-card Multi-card Packing Card Wrapping Machine YUP-600


    Ultrasonic Card Packing Machine YUP-600 can realize perfect single-card or multi-card packing by applying continuous ultrasonic welding technology. PLC controlled with friendly man-machine interface, it features fast speed, low noise, perfect welded pattern and reliable performance. It is applicable to pack cell phone charge card, standard and smaller SIM card in bulk.


    2. Features of Automatic Single-card Multi-card Packing Card Wrapping Machine YUP-600


    Key Features:

    1. Packing film is conveyed by special rubber wheel and air absorbing belt to ensure flat and stable film.
    2. It has the function of automatic checking for card overlapping and card absence. If the above occurs, it will stop automatically with error notice.

    3. The second feeder can be installed to pack double cards or insert the mini booklet in one bag.
    4. It applies the welding technology of continuous ultrasonic welding, which can ensure clear and beautiful sealing patterns or lines.
    5. Single-card packing or Multiple-card packing is available, and the number of cards to be collected can be set.
    6. Visual inspection system (CCD) is optional, which can check the serial number or bar codes of the cards.


    3. Technical Parameter of Automatic Single-card Multi-card Packing Card Wrapping Machine YUP-600


    Automatic High-Speed Ultrasonic Card Packing Machine YUP-600 is also known as Speedy Card Packaging Machine, High-speed Card Wrapping Machine, Card Wrapper or Card Packer YUP-600.


    ★ Main Technical Parameters


    Power SupplyAC 380V/50 HZControl MethodPLC programming+ Step System
    Total Power5KWOperator1 person
    Air Source6 kg/c㎡(Dry)DimensionL3500×W1750×H1860mm
    Air Consumption50L/minPackaging Material

    BOPP film or similar

    0.025mm~0.035 mm thick

    WeightApproximate 800KgCard size0.25-0.8mm thick CR80 cards
    SpeedMax 6000 pcs/hrPackaging SizeFolded film 120 mm wide (for standard card ) or 60mm wide (for half size card), Film roll inner diameter 3 inches and external diameter less than 450 mm,


    4. Other details of Automatic Single-card Multi-card Packing Card Wrapping Machine YUP-600


    Packing information: using the PE film as the protection fims insides, standard export plywood case outside;


    Power supplyAC 380V/50 HZCard sizeCustomized
    Total power5.0KWControlPLC control + servo/stepper motor
    Air source6 kg/cm2Operators needed1
    Air consumptionApprox. 50L/minDimensionL3500×W1750×H1860mm
    Packaging film materialBOPP film, etc.Packaging film thickness0.025mm~0.035mm
    Sealing methodHeat sealingProductivityAround 6000PCS/H
    Card materialsPaper card, PVC, ABS, PET, PVC/ABS composite materials, etc.


    Our service :
    Pre-sale
    (1) Professional suggestions (raw material matching, machine selection, the condition of building factory, feasibility analysis for brick machine production line)
    (2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
    (3) Efficient on-line service
    (4) Welcome to visit our factory and production line any time, if you need, we can make invitation letter for you.
    (5) Introduce the company file, product categories and production process.
    Sale:
    (1) Update the production scheduling in time
    (2) Quality supervision
    (3) Product acceptance
    (4) Shipping on time
    After-sale:
    (1) The engineer will guide to carry out the plant at the clients side if needed.
    (2) Set up, fix, and operate
    (3) offer training to the operator until they are satisfied at clients side.
    (4) Skill support the whole using life.
    (5) Recall clients regularly ,get feedback in time ,keep well communication with each other


    Guarantee
    (1)We can supply one year guarantee period for our card machines, if the client have any question ,they could contact our service department any time ,we will supply efficient service .
    (2)Within one year ,if the client meet the unsolvable questions ,we can make site supporting.
