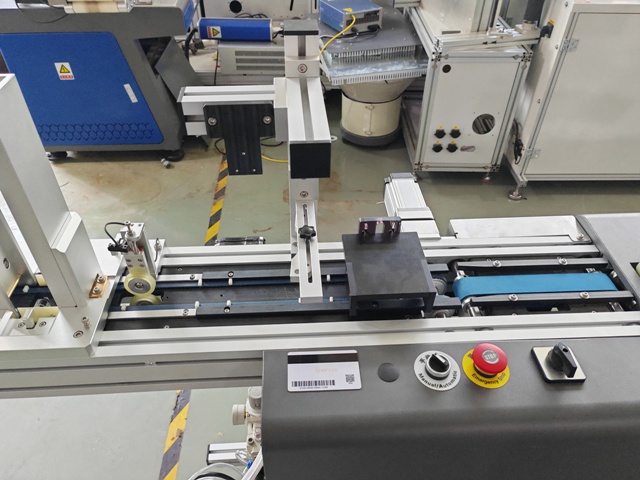

High Speed Industrial Computer Smart Card Data Reading And Comparing Machine YDV-7000+

New Smart Card Data Verification Machine YDV-7000+

Smart Card Data Quality Control Machine YDV-7000+

Smart Card Data Reading and Comparing Machine YDV-7000+

Smart Card QC Data Tester YDV-7000+

1. Introduction of High Speed Industrial Computer Smart Card Data Reading And Comparing Machine YDV-7000+

The improved model YDV-7000+ has applied the more reliable and reasonable machine structure by adding one card flipper and by using the card suction structure for card feeding magazine. It can improve the machine reliability and can reduce the ratio of card surface scratches.

2. Machine Functional Configuration of High Speed Industrial Computer Smart Card Data Reading And Comparing Machine YDV-7000+

Basic configuration:

Card feeding magazine (CR80 card/card suction design)→double-card detection unit-OCR surface data reading unit→RFID card chip data verification unit(LF+HF/optional UHF)→card flipper→magnetic stripe data reader→Bad Card Rejection Unit →Good Card Collection magazine

3. Technical Parameters of High Speed Industrial Computer Smart Card Data Reading And Comparing Machine YDV-7000+

Technical parameters:

1.Speed: 5000-7000 CPH.

2. Control mode: Industrial computer

3. Equipment power supply: AC220V, 50/60HZ

4. Dimensions: 3300X600X1600MM

5. Equipment weight: 300kg

6. Power: 4KW

4. Application of High Speed Industrial Computer Smart Card Data Reading And Comparing Machine YDV-7000+

Improved Smart Card Data Verification Machine YDV-7000 is designed to realize the function of data comparison and verification on RFID card chip data, card surface data and magnetic stripe data of smart card. It has three key functional units: RFID Card chip data verification unit, OCR surface data verification unit and Magnetic stripe data verification unit.
